Extensions to Victorian Home | Yorkshire Conservation Area

Project at a Glance

Location: Tollerton, York, YO61
Architect: Fining Associates Chartered Architects
Planning Authority: Hambleton District Council
Heritage Context: Tollerton Conservation Area
Scope: Double Storey Side Extension, Single Storey Rear Extension, Loft Conversion, Replacement Garage
Completed EPC Rating: B

Transforming a Victorian Home in a Conservation Area

Fining Associates Chartered Architects were appointed to design a comprehensive programme of alterations and extensions for a property located on in Tollerton, York. This medium-sized, detached house was built circa 1900–1910 AD, firmly placing it within the Victorian/Edwardian era. Despite its structural soundness, the building required extensive modernisation due to poorly executed legacy alterations, including unsympathetic contemporary front windows.

The project’s location within the Tollerton Conservation Area presented a demanding design brief. The design team had a statutory duty to preserve or enhance the character of this designated heritage area. Any proposed interventions needed to remain subservient to the host property in scale, massing, and appearance, while also preserving the visual amenity of the public highway.

Architectural Design and Interventions

Our proposal successfully navigated strict planning policies to secure Householder Planning Permission (Reference: 19/00759/FUL). The approved scheme included several key architectural upgrades designed to elevate the property into a highly functional family home:

Two-Storey Side Extension and Garaging

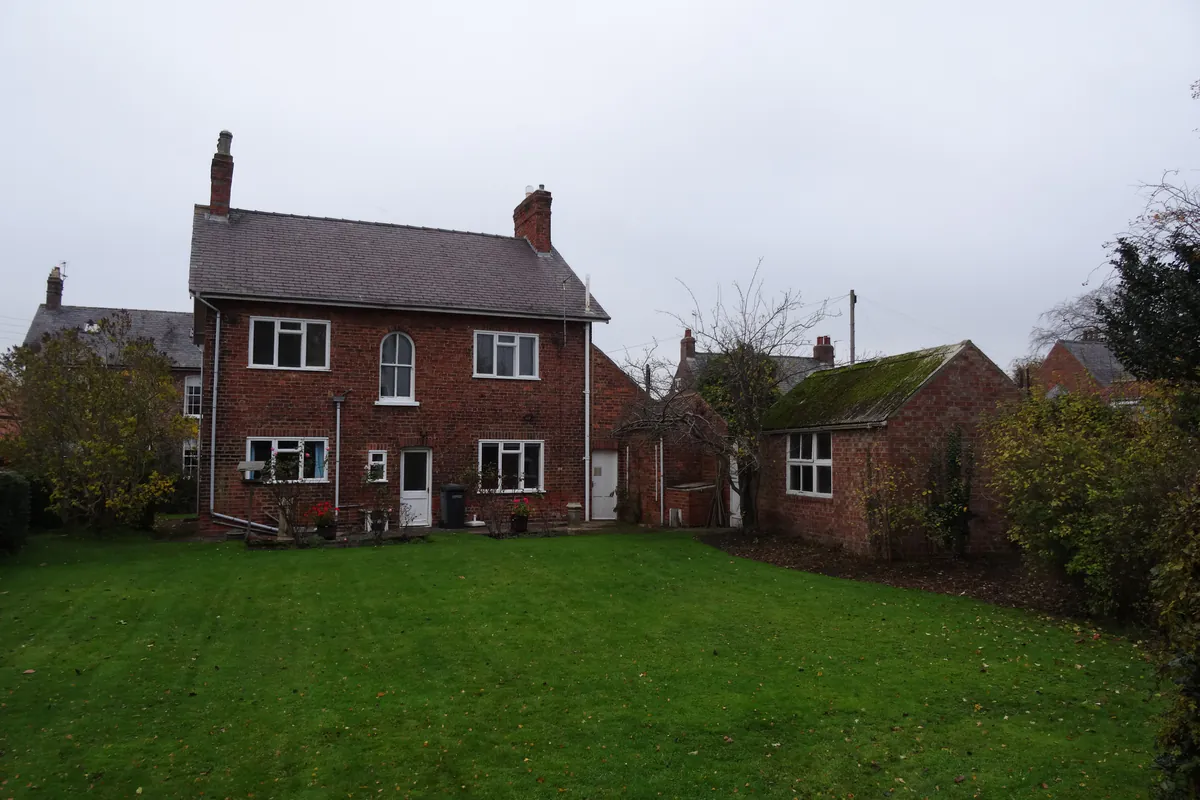

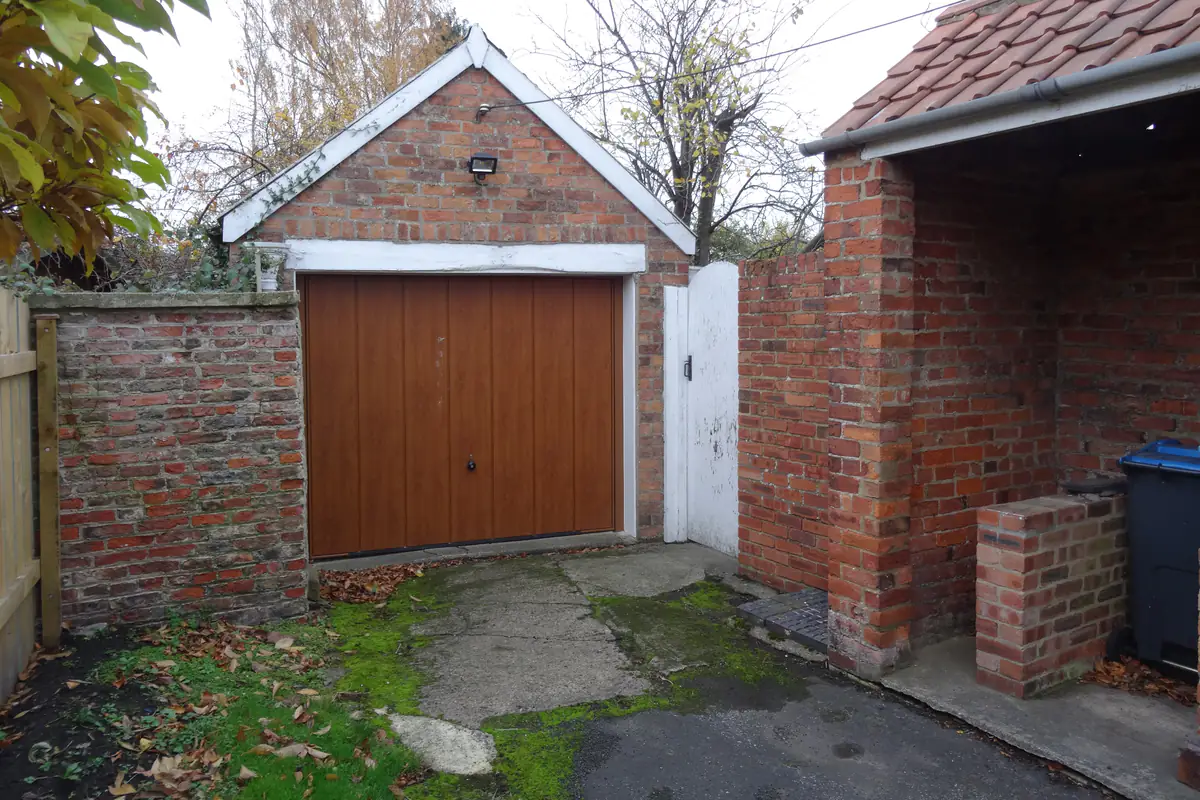

The existing brick-built single garage was demolished to accommodate a new two-storey side extension.
This side extension was designed with a pitched roof that deliberately reflects the gable roof form of the main house, ensuring complete visual coherence.
Wide gaps were retained on either side of the property to preserve views of the rear garden from the street, which was an important consideration for the Conservation Area officer.
A separation distance of at least 17 metres was maintained between the side extension and neighbouring properties to mitigate any adverse amenity impact.
A new 7-metre by 7-metre double garage was constructed further back from the highway and screened behind a new driveway gate, further enhancing the site’s overall appearance.

Contemporary Single-Storey Rear Extension

The contemporary rear extension spans the full width of the house at over 12 metres.
It features an angled plan form with a diagonal protrusion extending 7.4 metres at one end and tapering to 6 metres at the other, creating a dynamic internal spatial arrangement.
A planted sedum green roof was specified over the flat roof, turning the roofscape into a visually interesting and ecologically-minded feature that helps the extension blend into the garden.
Two roof lanterns were included to flood the interior kitchen and utility spaces with natural light.
The rear elevation features aluminium and glass bi-folding doors alongside an external rendered finish, deliberately distinguishing the modern addition from the Victorian brickwork of the parent building.

Heritage Restoration and Roof Alterations

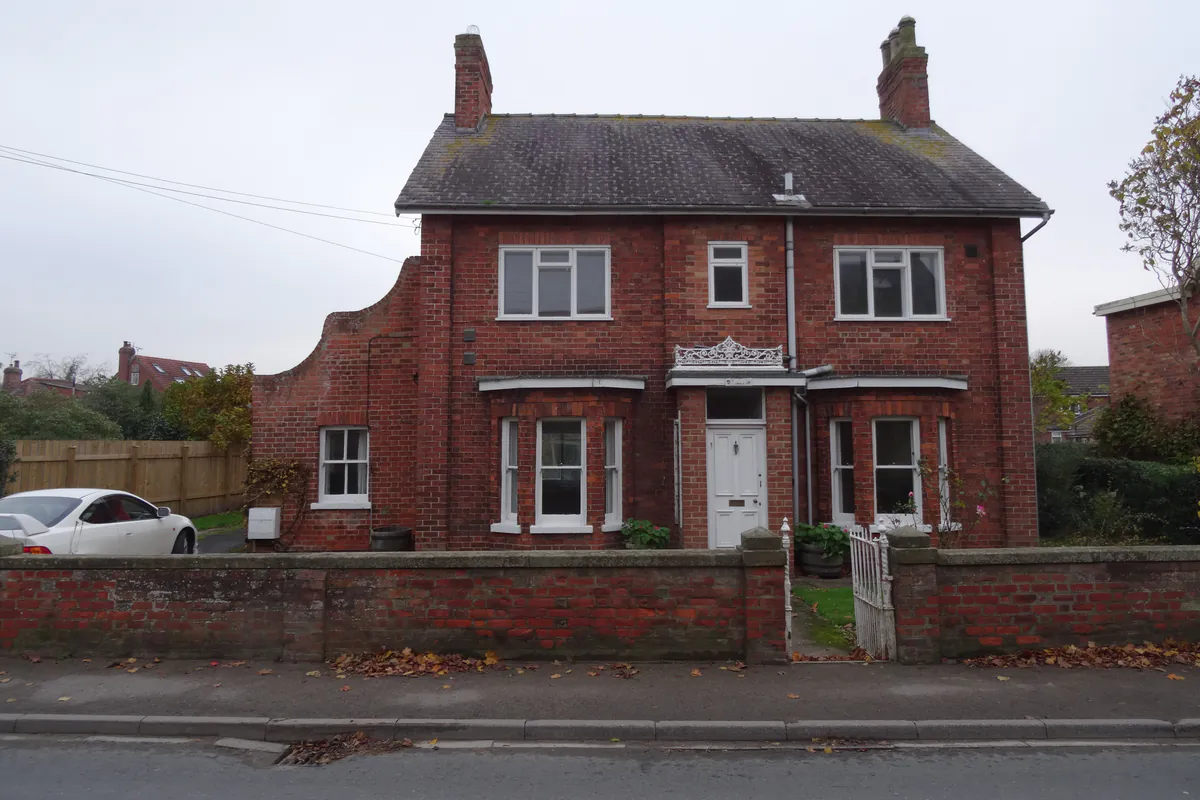

Three unsympathetic contemporary front windows were removed and replaced with traditional sash windows to return the property to its original, historic appearance.
Two dormer windows with pitched roofs were approved for the rear roof slope, carefully considered to be conducive to the surrounding vernacular style.
Two Juliet balconies were approved for the rear elevation at the first-floor level, ensuring no increased overlooking of neighbouring properties.

Proactive Planning and Community Reception

Securing planning permission within a Conservation Area requires careful negotiation and a deep understanding of local policy. Originally, the submitted scheme included a single box dormer, which was found contrary to local design policies. Fining Associates successfully negotiated a redesign, replacing the box dormer with two individually detailed pitched-roof dormers to satisfy both the client’s needs and the planning authority’s visual requirements. Furthermore, the rear extension’s initial projection was cut back by 1,500mm on both sides to achieve a 50% rear extension ratio relative to the original footprint.

Because of this highly sensitive and responsive approach, the application received zero objections from the Tollerton Parish Council, the public, or the eight consulted neighbouring property owners.

The Completed Project Built Outcome

The built outcome has transformed Tarlswood into a versatile, high-quality family home finished to an exceptional standard. Outstandingly for a Victorian property, the comprehensively renovated building achieved an EPC Rating of B.

Key interior and exterior features of the final build include:

An open-plan living kitchen that flows naturally into a defined dining area and living space.
A side extension providing a utility space and a guest suite or home office with en-suite facilities.
A principal first-floor bedroom suite featuring a freestanding bath and a concealed dressing room door leading to a private en-suite.
A loft conversion providing two additional versatile rooms, delivering on the spatial ambition of the approved scheme.
Handmade timber sash windows that beautifully execute the heritage-positive planning strategy.
A substantial garden room located at the far end of the south-facing rear garden, fully equipped with power and internet connectivity.

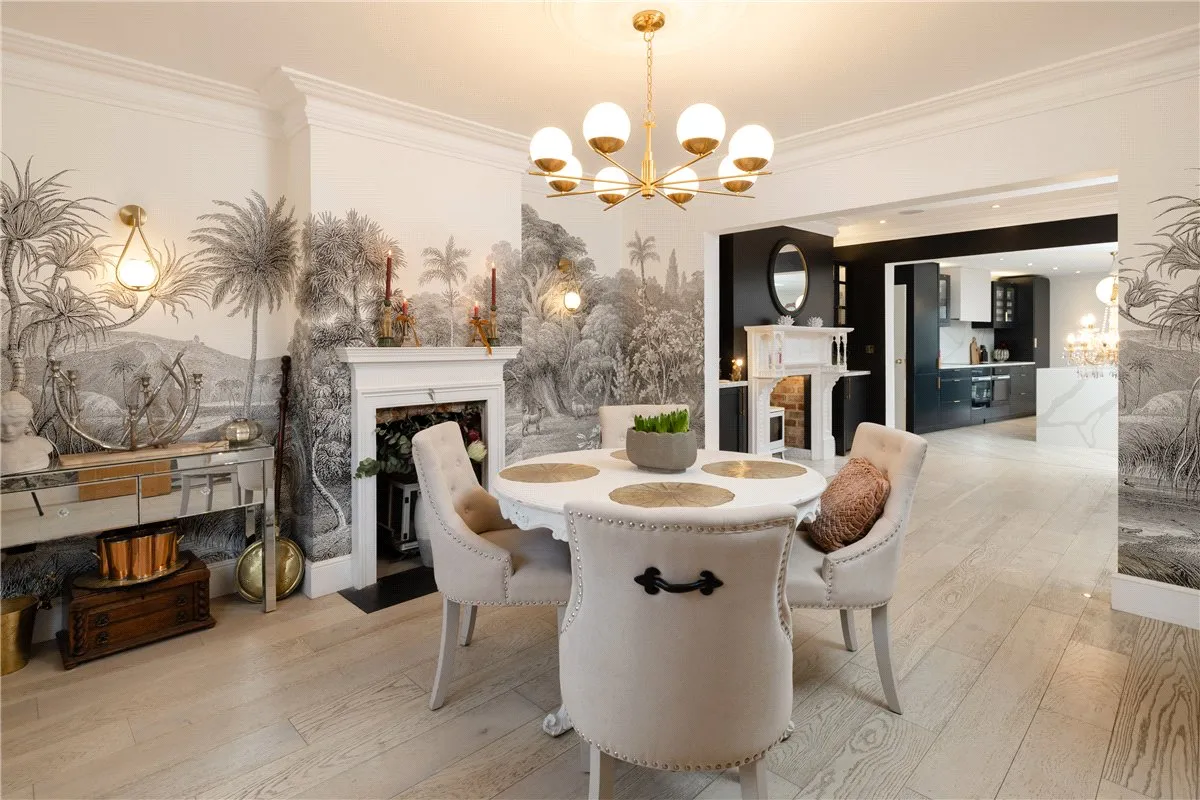

Formal dining area in a renovated Victorian property featuring a scenic monochrome tropical wallpaper mural, restored marble fireplace surround, ornate carved round dining table with studded upholstered chairs, brass globe chandelier, and washed oak flooring — opening through to the contemporary rear extension kitchen beyond, by Fining Associates Chartered Architects, York

Expansive open-plan kitchen and living space within the contemporary single-storey rear extension of a renovated Victorian property, featuring a large pyramid roof lantern, dark navy bespoke kitchen cabinetry with marble worktop island, black aluminium bi-fold doors opening to the south-facing garden, and rendered interior walls contrasting with the original Victorian host building — rear extension design by Fining Associates Chartered Architects, Tollerton Conservation Area, York

Light-filled guest suite bedroom within the two-storey side extension of a renovated Victorian property, featuring a grey upholstered double bed, brass wall-mounted reading lights, plantation shutters, blush roman blinds, washed oak flooring, and crisp all-white interior finish — residential extension by Fining Associates Chartered Architects, Tollerton Conservation Area

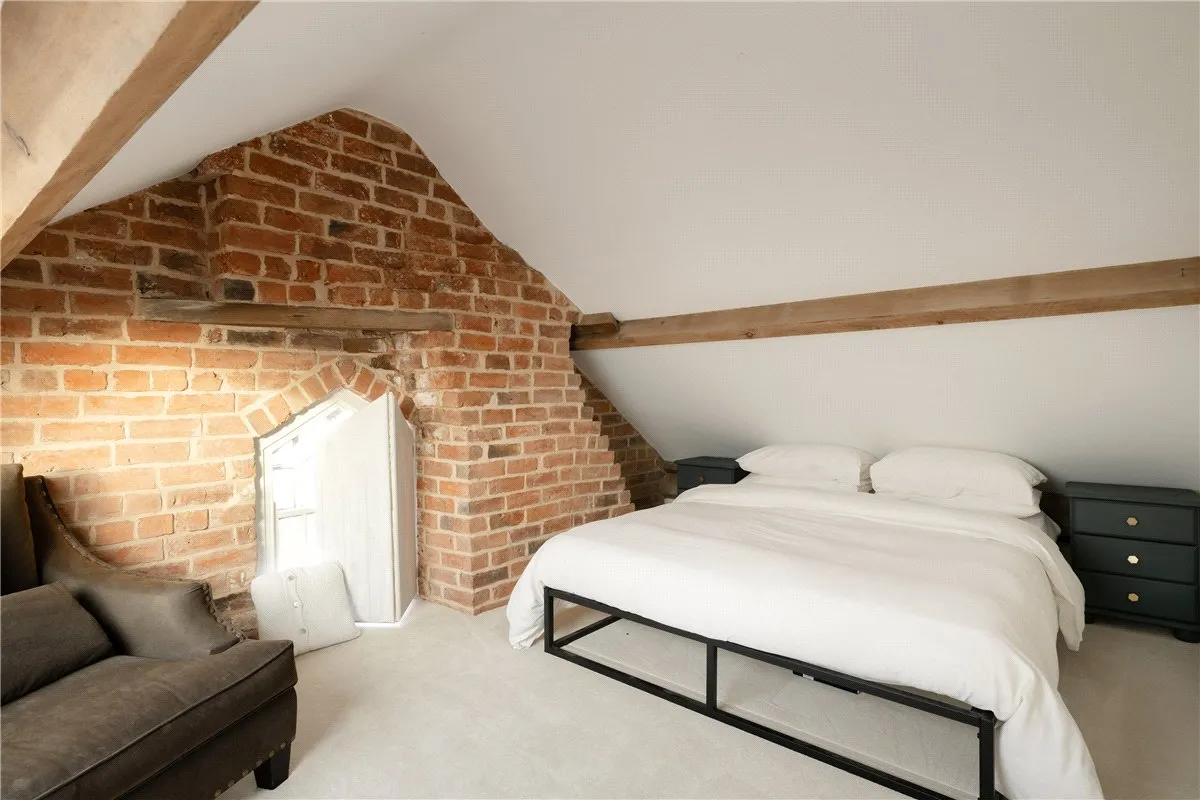

Loft conversion bedroom in a renovated Victorian property showcasing a retained exposed brick chimney breast with arched opening, original oak roof beams, sloped ceiling, and contemporary furnishings — loft conversion by Fining Associates Chartered Architects within the Tollerton Conservation Area

Restored Victorian entrance hallway featuring a chequerboard marble-effect floor, white painted timber wainscoting, deep navy upper walls, turned balustrade staircase, period arched ceiling detail, and antique-style pendant lanterns — sympathetic heritage restoration by Fining Associates Chartered Architects, York

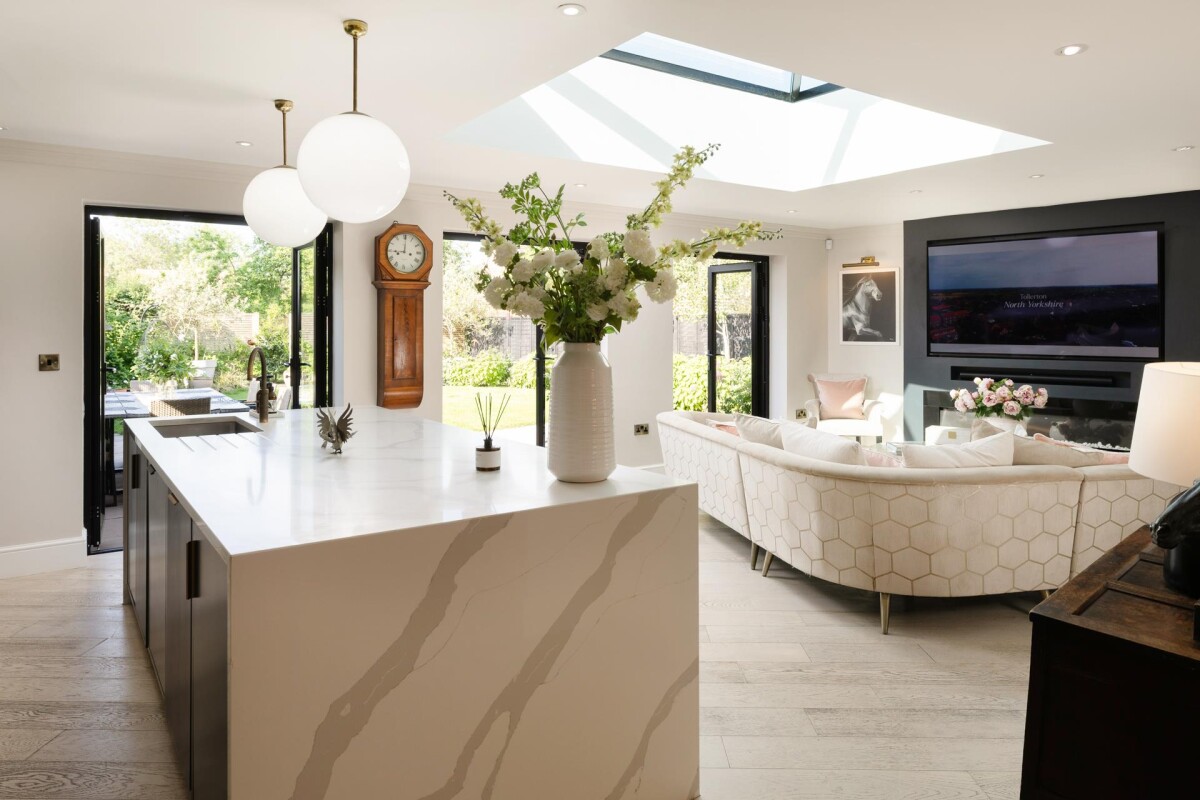

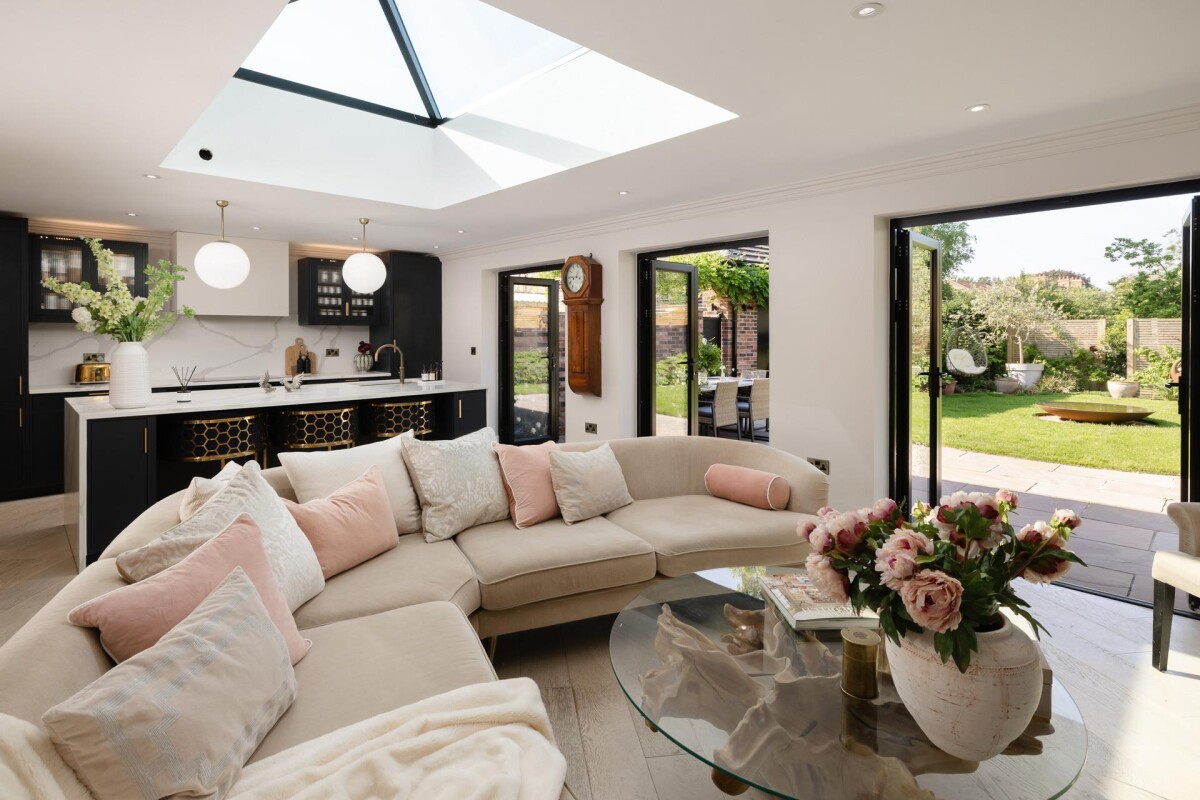

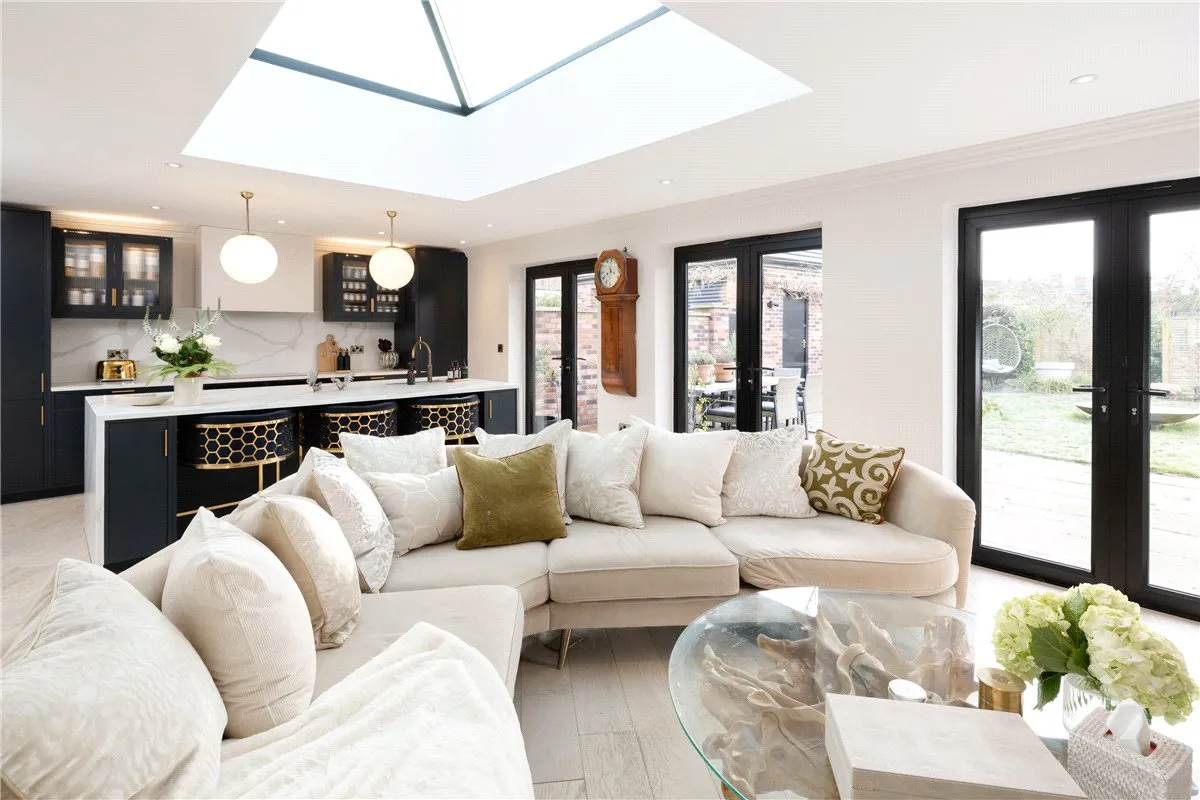

Light-filled open-plan living area within the single-storey rear extension in Tollerton, featuring a large roof lantern, aluminium-framed bi-fold doors to the south-facing garden, and contemporary interior finishes, part of a comprehensive house extension scheme by Fining Associates Architects in the Tollerton Conservation Area

View from the principal bedroom through to a private en-suite, featuring a freestanding bath raised on a marble plinth with traditional floor-mounted taps and a circular wall mirror — part of the first-floor remodelling within a Conservation Area renovation by Fining Associates Chartered Architects, York

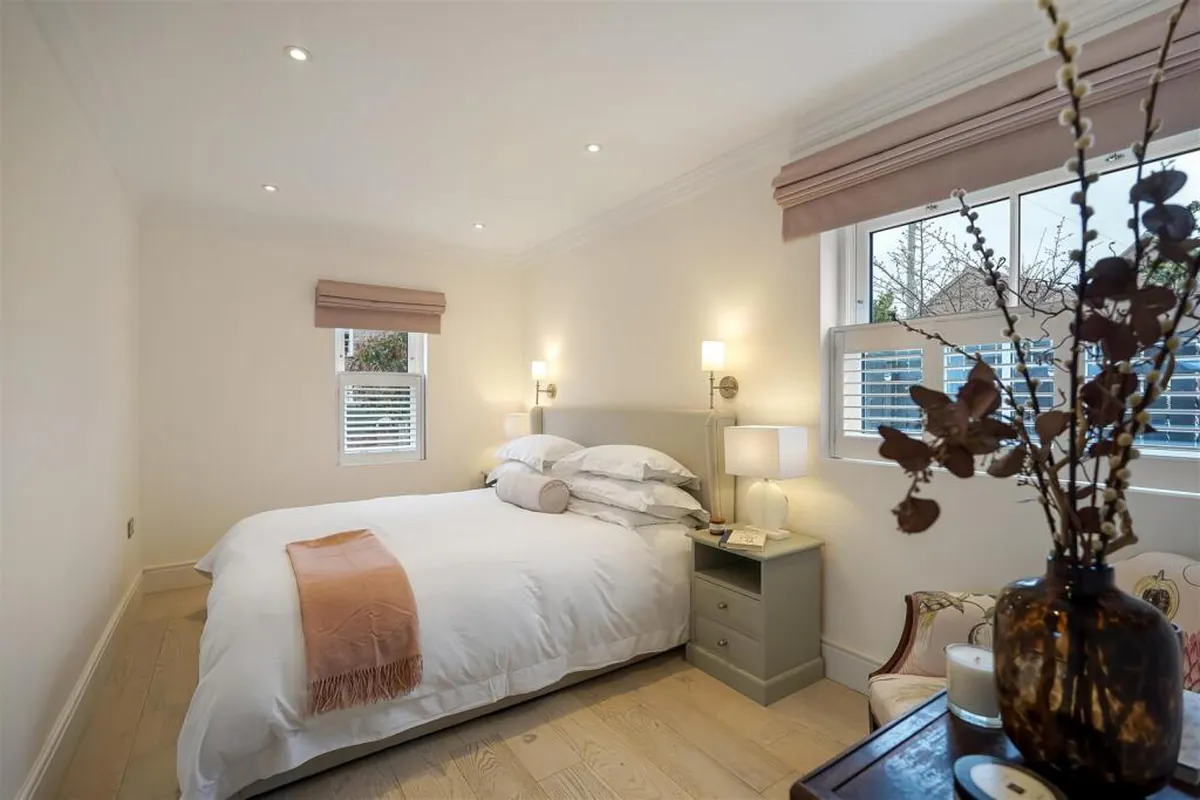

Guest suite bedroom within the two-storey side extension, dressed with a blush throw and bedside styling of dried flowers and candle, plantation shutters and tailored Roman blinds — designed as flexible guest or home-working accommodation by Fining Associates Chartered Architects

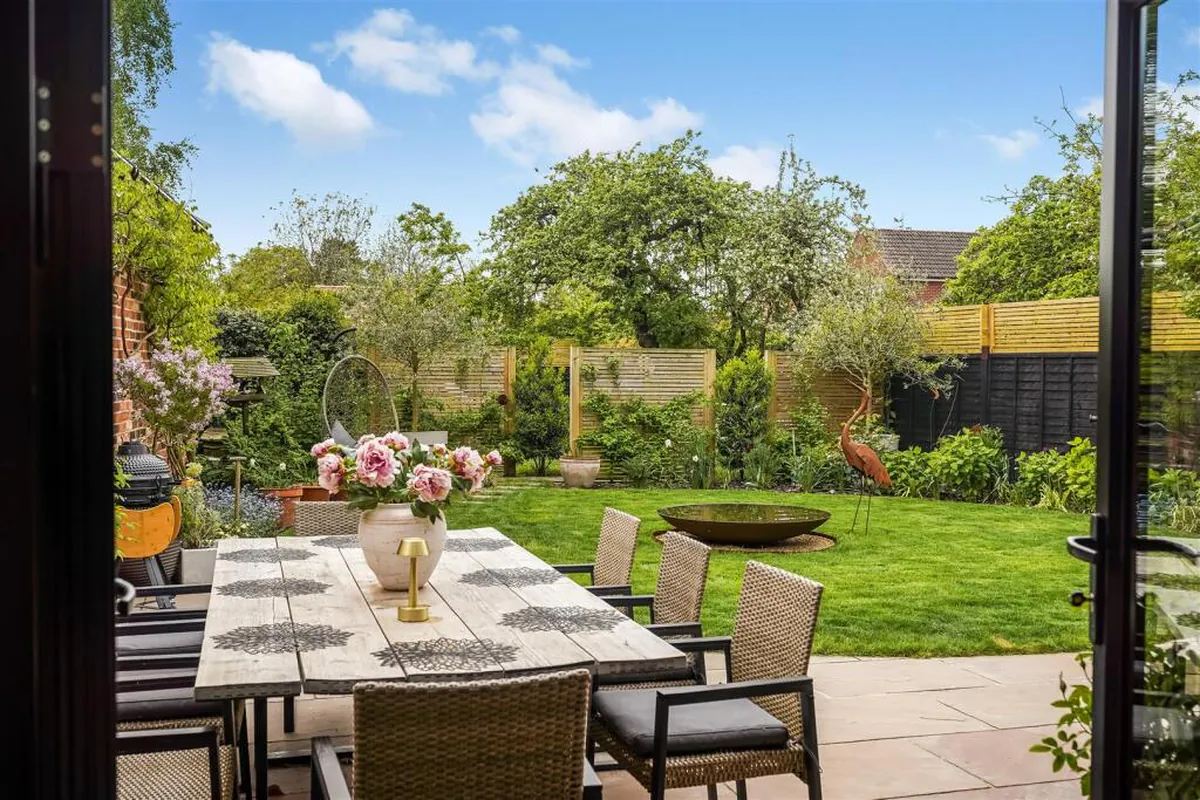

South-facing rear garden showing a sandstone patio dining terrace opening onto a lawned section with fire pit and mature planted borders enclosed by timber fencing — one of three distinct garden zones retained and landscaped as part of a comprehensive Victorian home renovation in the Tollerton Conservation Area

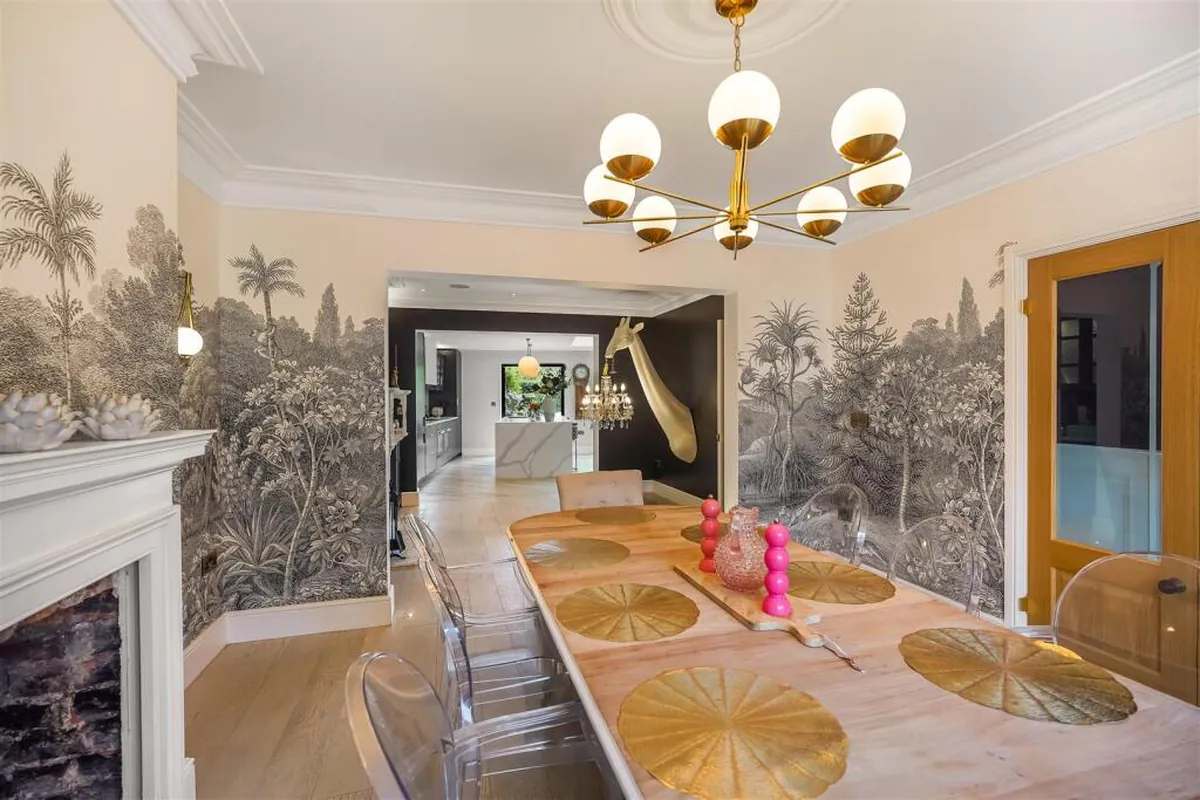

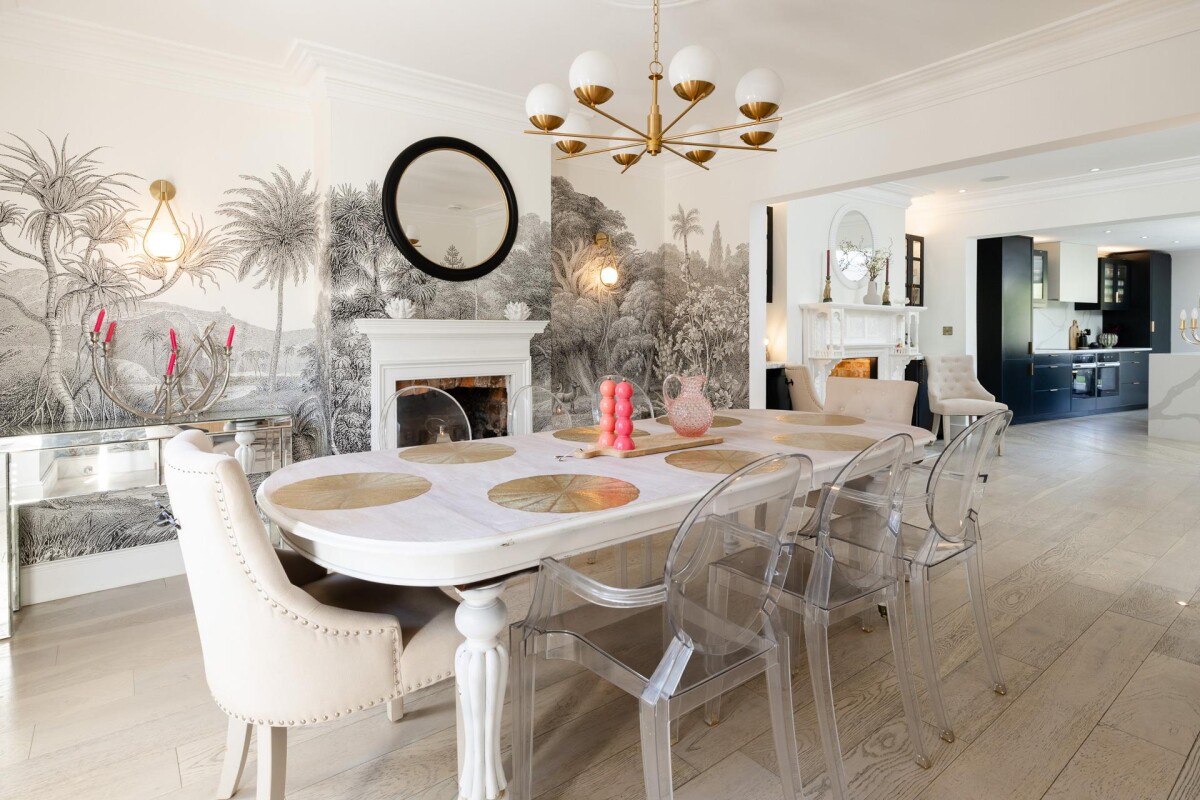

View along the dining table toward the open-plan kitchen extension, with the original Victorian fireplace surround retained on the left, mural-patterned wallpaper, brass orb chandelier, and a solid oak entrance door — illustrating the enfilade sightline created between old and new spaces in a Conservation Area renovation by Fining Associates Chartered Architects

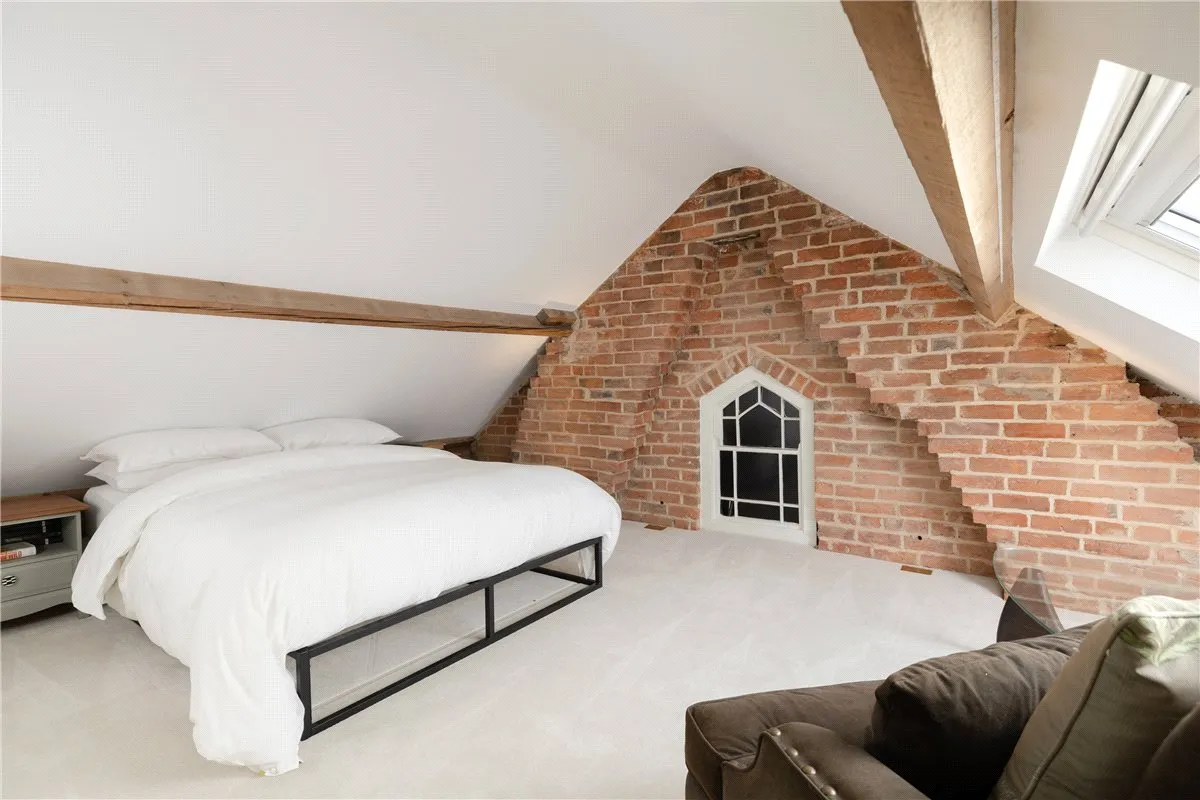

Wide view of a loft conversion bedroom showing the full vaulted ceiling structure, twin oak roof beams, exposed brick gable end with a retained arched window opening, and a modern rooflight bringing natural light into the eaves — loft conversion by Fining Associates Chartered Architects within the Tollerton Conservation Area

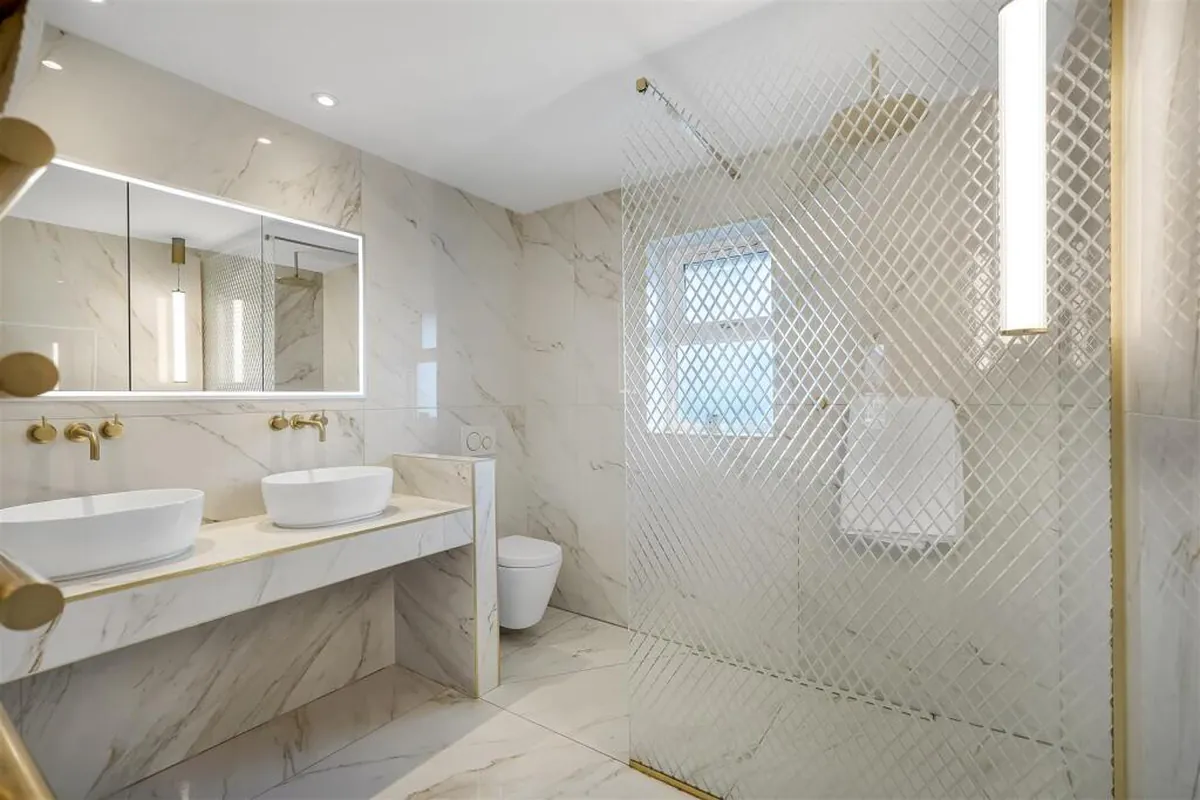

Contemporary en-suite bathroom finished in book-matched marble tiling, featuring twin oval countertop basins on a floating marble vanity, brushed brass wall-mounted taps, an illuminated mirror cabinet, and a frameless glass shower screen with a gold-edged diamond lattice pattern — part of the bathroom refurbishment programme by Fining Associates Chartered Architects, York

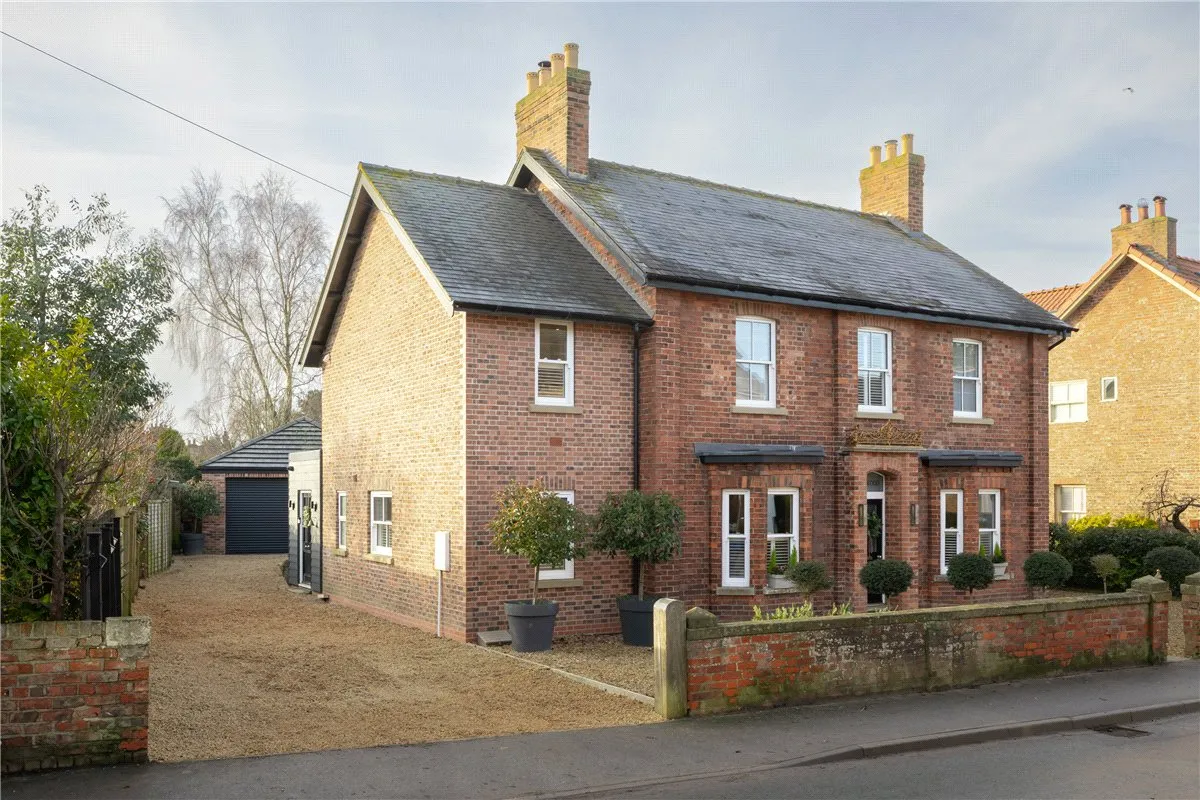

Daytime quarter-elevation view of a renovated Victorian property showing the new two-storey side extension with a pitched roof matching the gable form of the host building, traditional sash windows, a gravel driveway, and a detached double garage set back from the road behind brick boundary walling — extension design by Fining Associates Chartered Architects, York

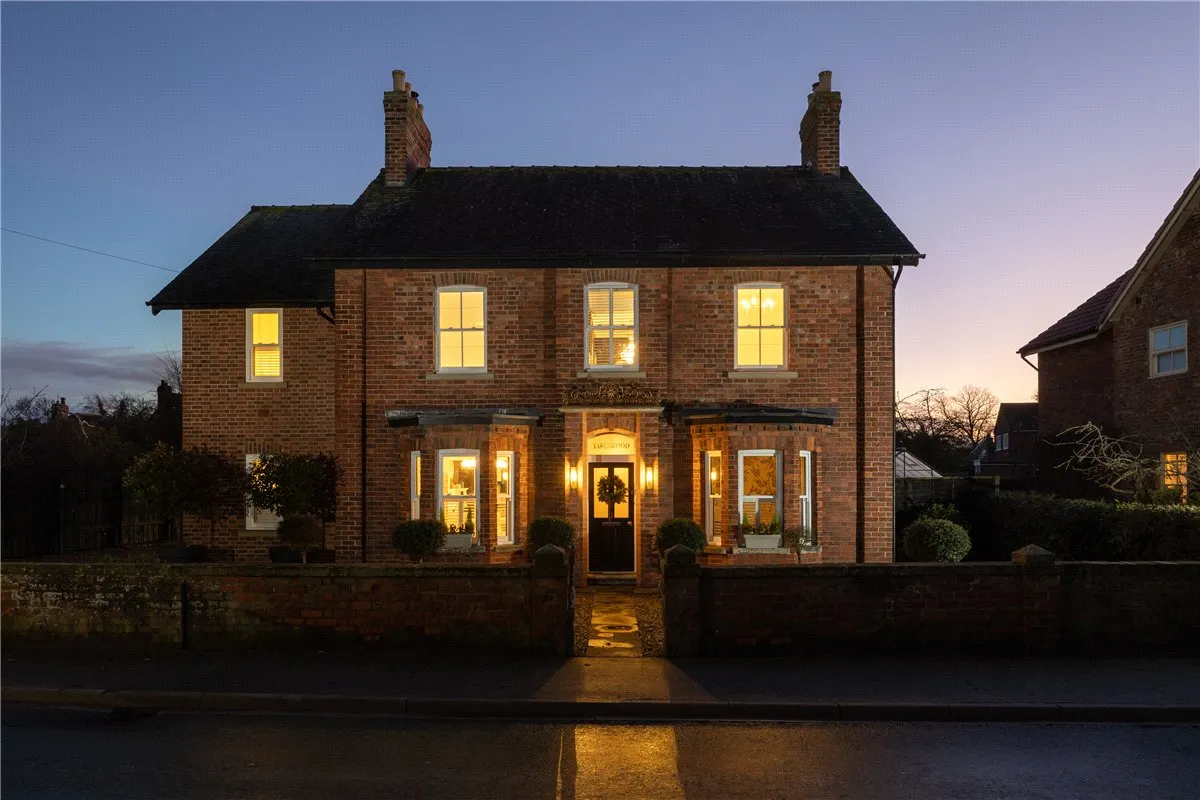

Twilight view of a restored Victorian property's front elevation, showing three matching sash bay windows, warm interior lighting, a wreath-dressed front door, and a brass nameplate above the entrance — the heritage-led restoration of original sash windows and brickwork by Fining Associates Chartered Architects within the Tollerton Conservation Area

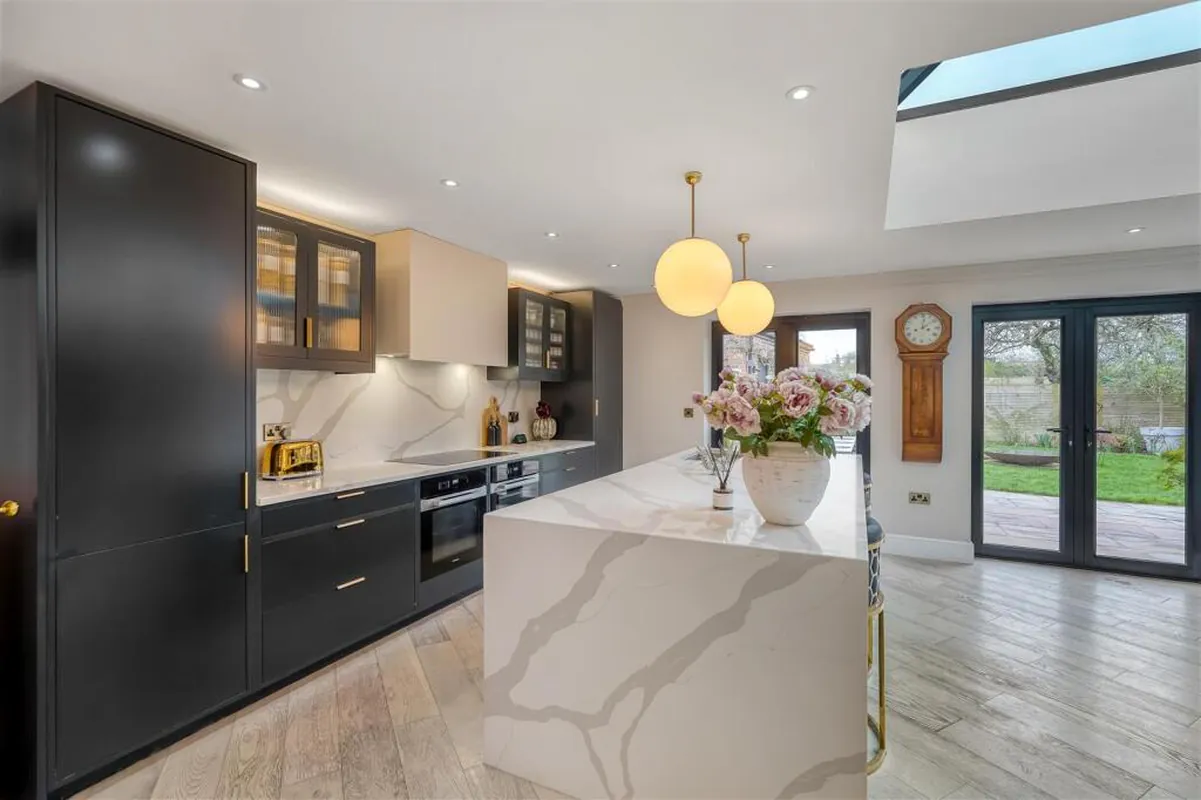

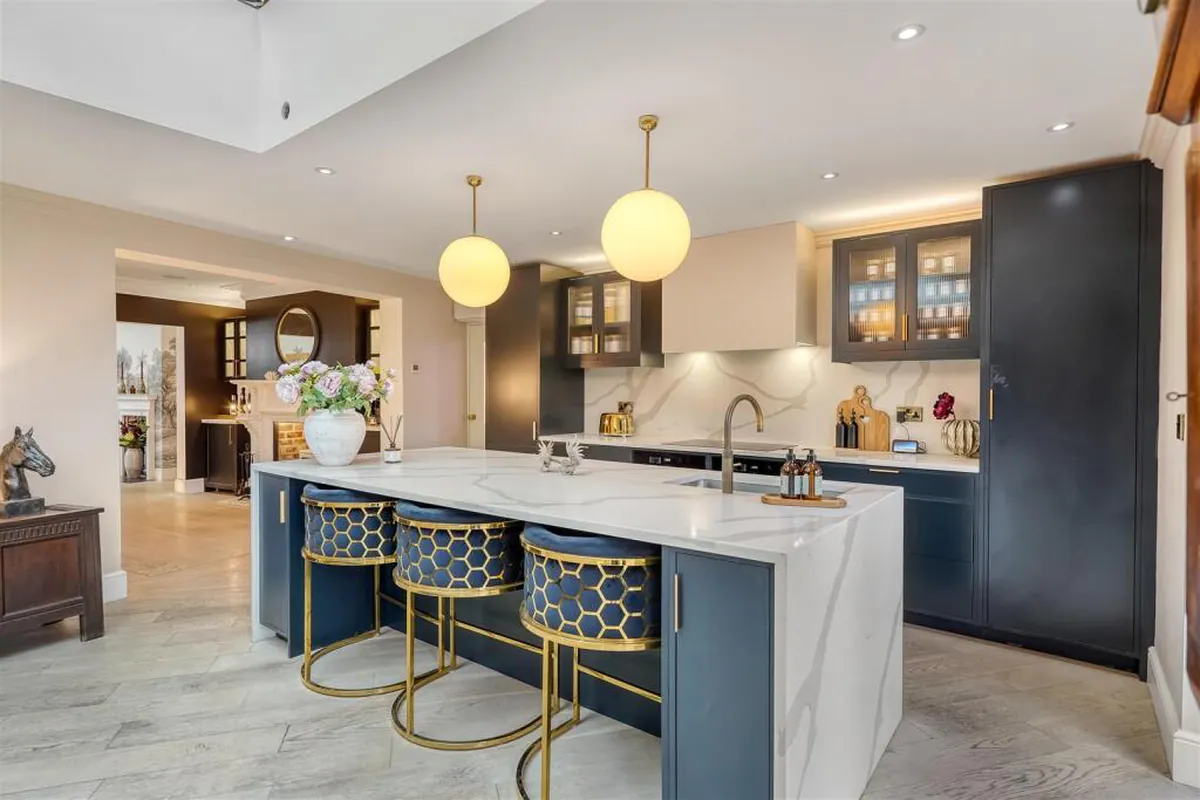

Bespoke kitchen within the rear extension featuring dark navy cabinetry, a marble-effect waterfall-edge island, brass globe pendant lighting, honeycomb-detail bar stools in navy velvet and brass, an antique longcase clock, and black-framed bi-fold doors opening onto the garden — kitchen and rear extension design by Fining Associates Chartered Architects, Tollerton Conservation Area

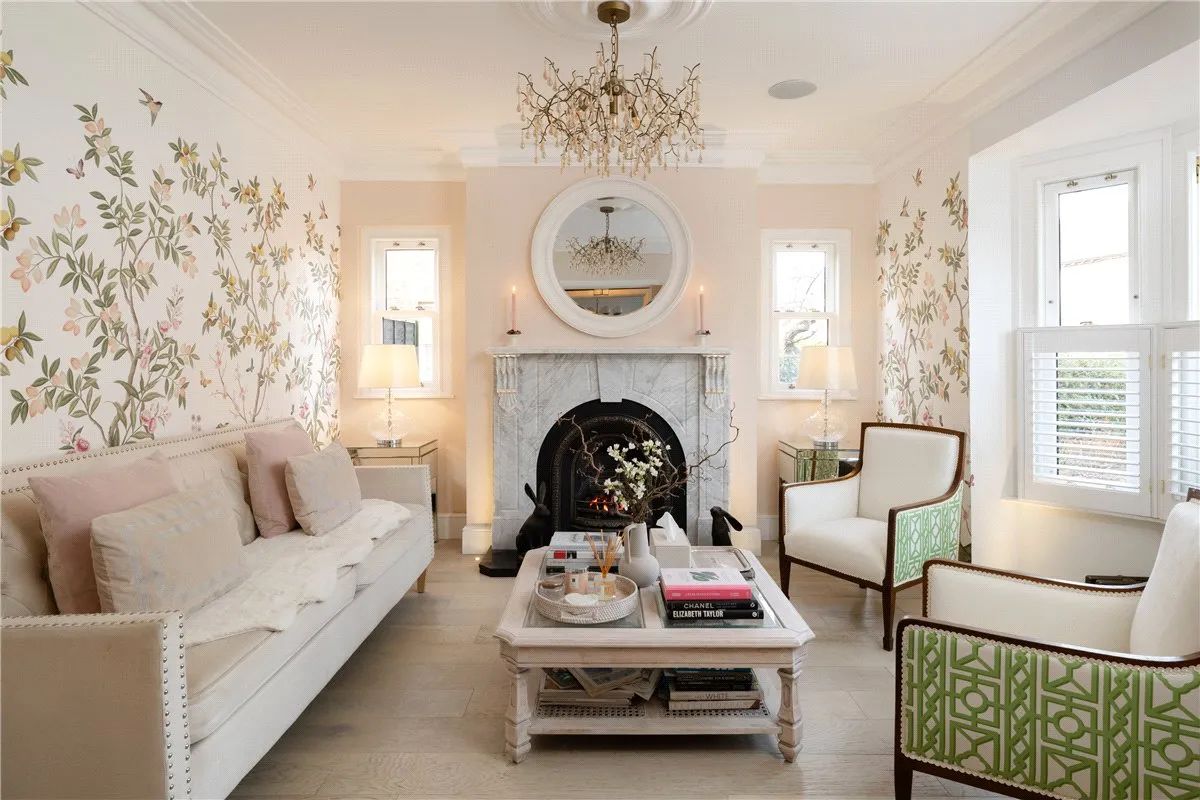

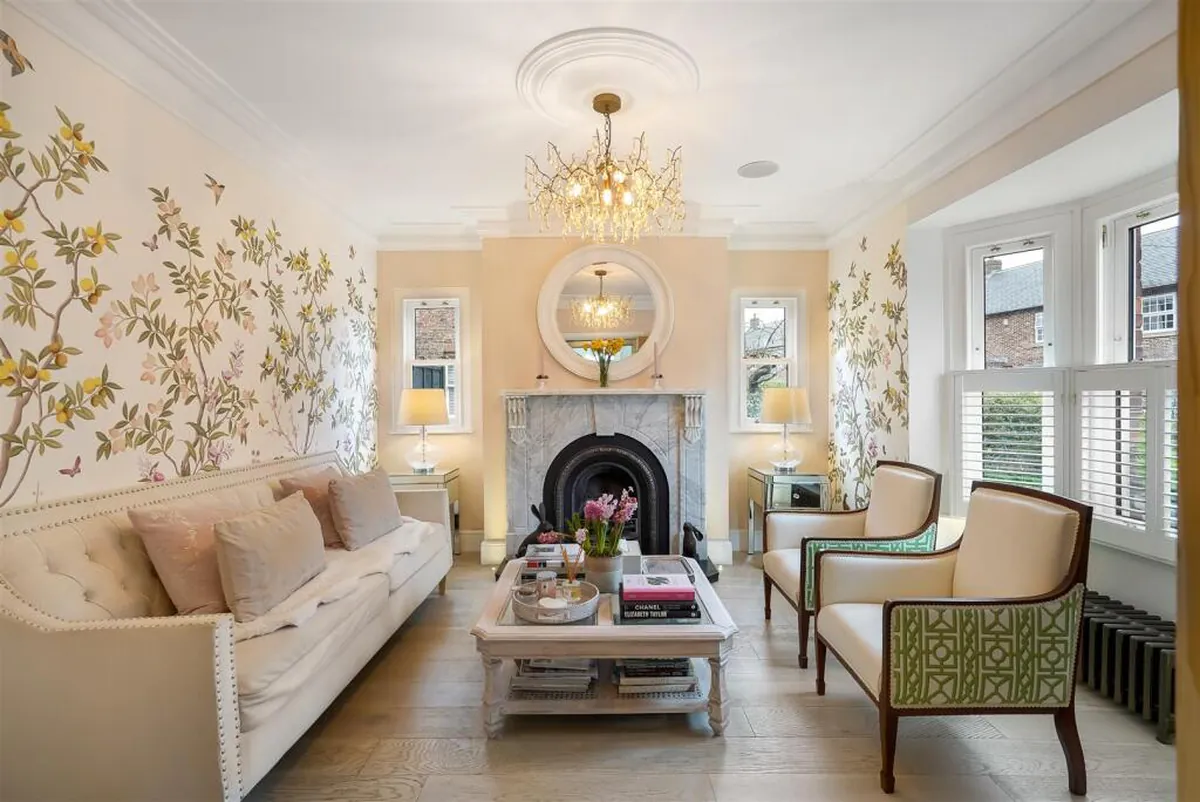

Separate snug or second reception room in a renovated Victorian property, featuring a restored marble fireplace with cast-iron grate, botanical bird-and-floral wallpaper, a branch-form crystal chandelier, and plantation-shuttered sash windows — providing flexible reception space alongside the open-plan kitchen, in a renovation by Fining Associates Chartered Architects, York

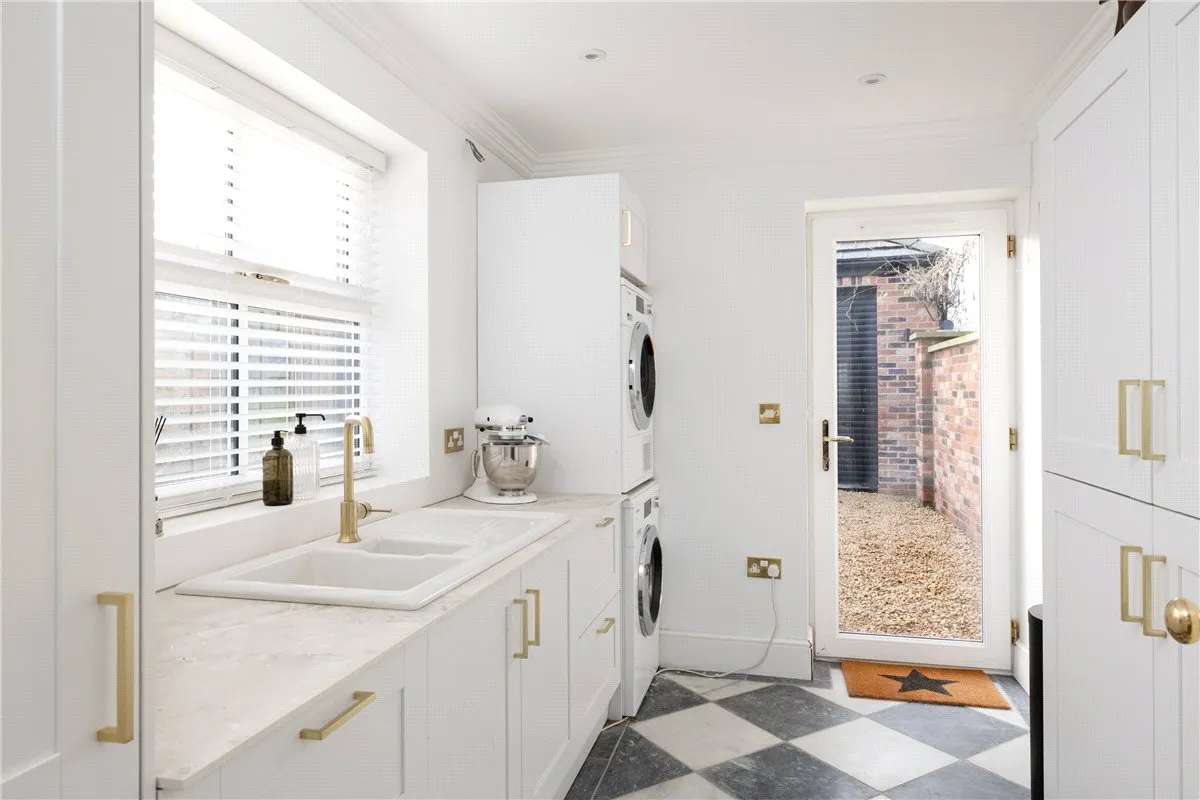

Utility and boot room fitted with white shaker-style cabinetry, brass bar handles, a stacked washer and dryer, a Belfast-style sink, and black-and-white checkerboard floor tiling, with a glazed door leading out to the side garden path — part of the side extension's practical accommodation, designed by Fining Associates Chartered Architects within the Tollerton Conservation Area

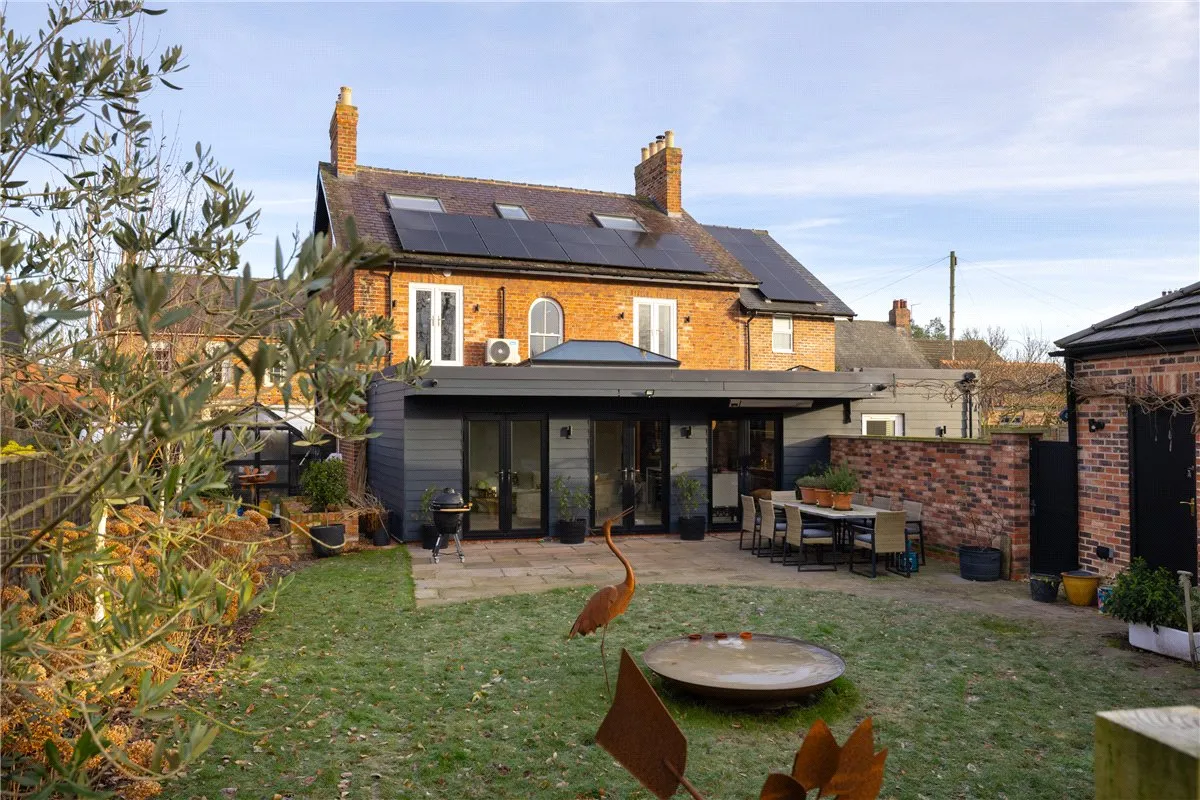

Rear elevation of a renovated Victorian property showing a single-storey extension with dark cladding and full-width bi-fold doors opening onto a paved terrace, a solar panel array fitted to the rear roof slope, a retained arched first-floor window, and a landscaped south-facing garden with dining terrace, fire bowl, heron sculpture, olive tree, and greenhouse — contributing to the property's EPC B rating, renovation by Fining Associates Chartered Architects, York

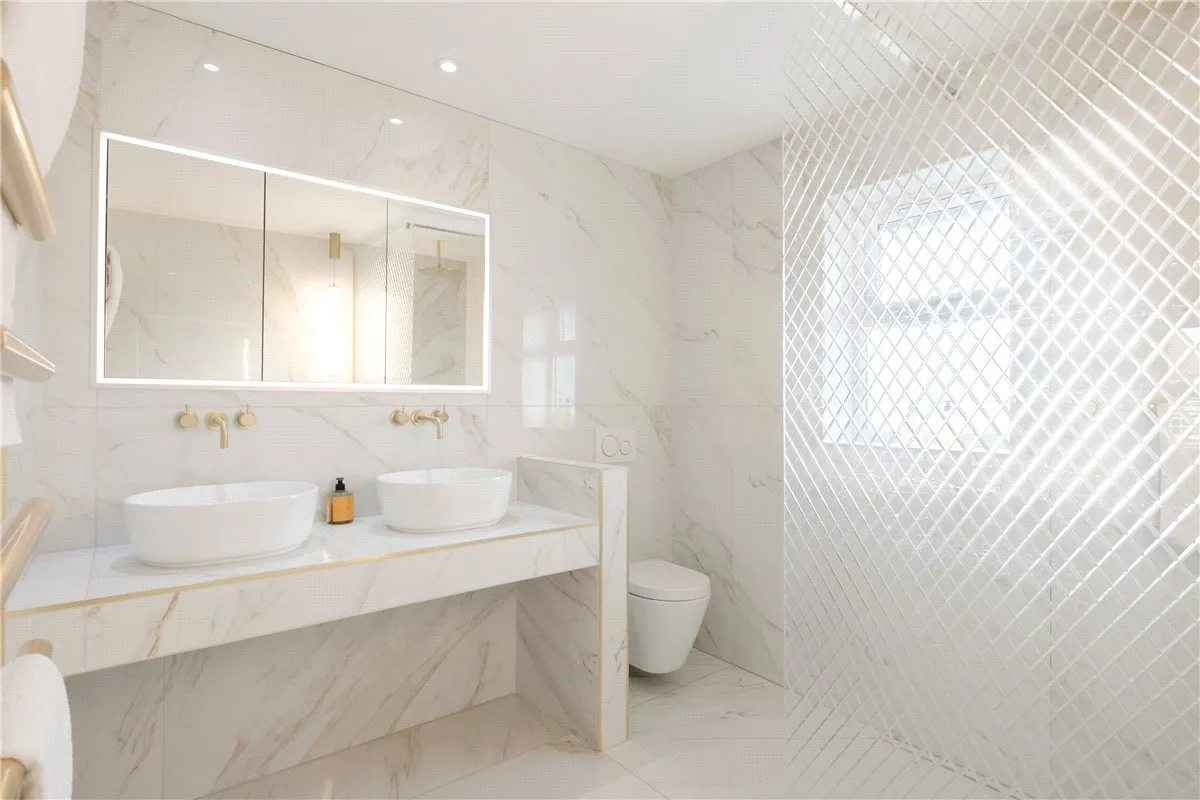

Detail view of the marble en-suite bathroom showing the full twin-basin vanity run with brushed brass taps and illuminated mirror cabinet, a wall-hung WC, and a frameless glass shower screen with gold-edged diamond lattice pattern — same en-suite as the wider shower-room view, photographed here to show the vanity and sanitaryware layout, in a renovation by Fining Associates Chartered Architects, York

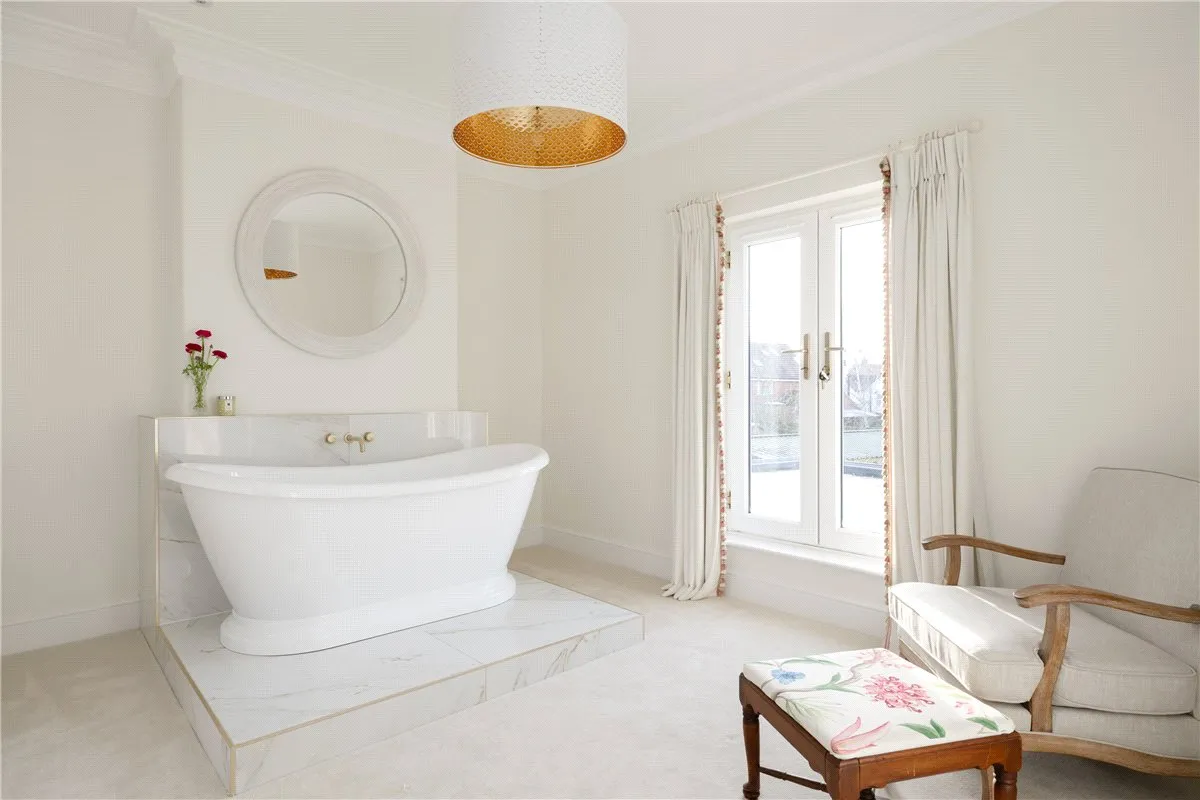

Principal bathroom featuring a freestanding roll-top bath on a raised marble plinth positioned beneath French doors opening onto a first-floor Juliet balcony, with a brass wall-mounted bath filler, round mirror, brass pendant drum light, and an antique floral-upholstered bench — the Juliet balcony was one of the heritage-sensitive design approvals secured for the rear elevation, renovation by Fining Associates Chartered Architects within the Tollerton Conservation Area

Family bathroom finished with traditional white wall tiling and marble-effect flooring, featuring a period-style exposed chrome shower with cross-head taps and riser rail, a traditional pedestal basin, a high-level cistern WC, and a frameless glass shower screen — opulent family bathroom alongside the first-floor bedrooms, renovation by Fining Associates Chartered Architects, Tollerton Conservation Area

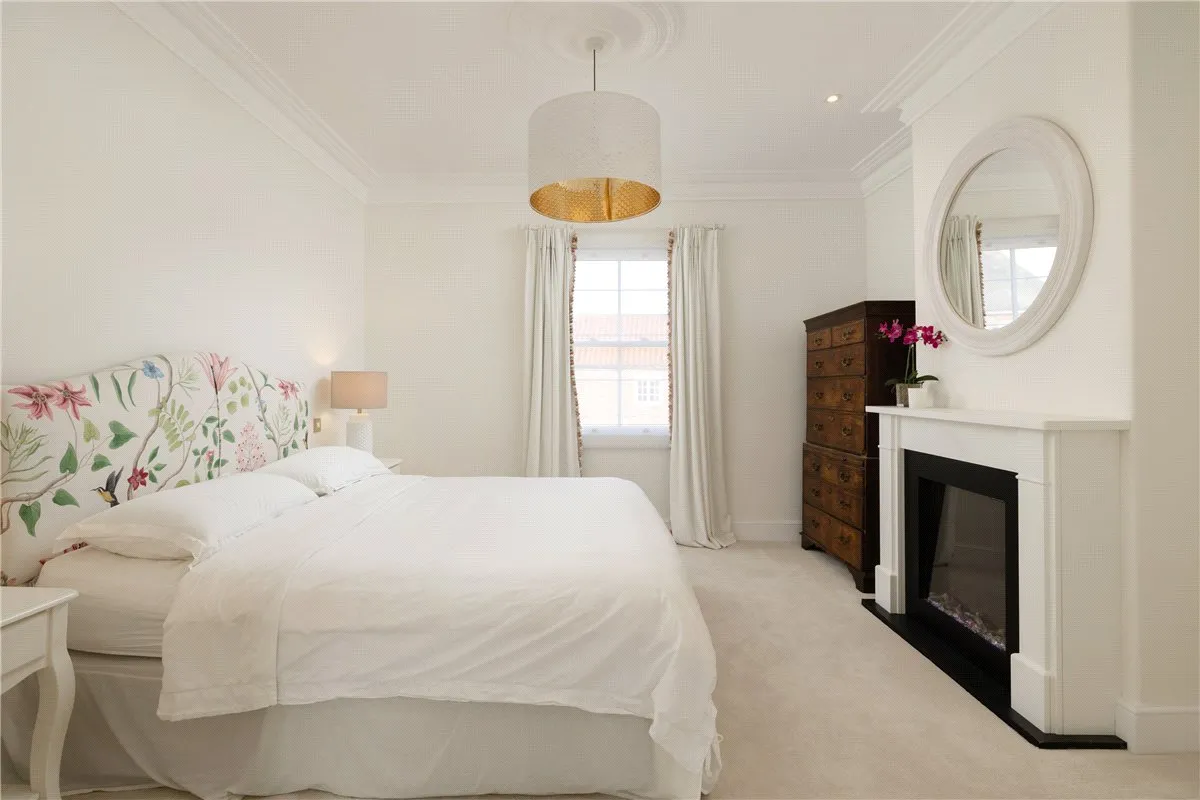

Second first-floor bedroom featuring a floral-upholstered headboard, an antique chest of drawers, a round wall mirror, a brass-trimmed pendant light, and an original fireplace retained as a feature alongside the opulent family bathroom — part of the first-floor accommodation in a renovation by Fining Associates Chartered Architects, Tollerton Conservation Area

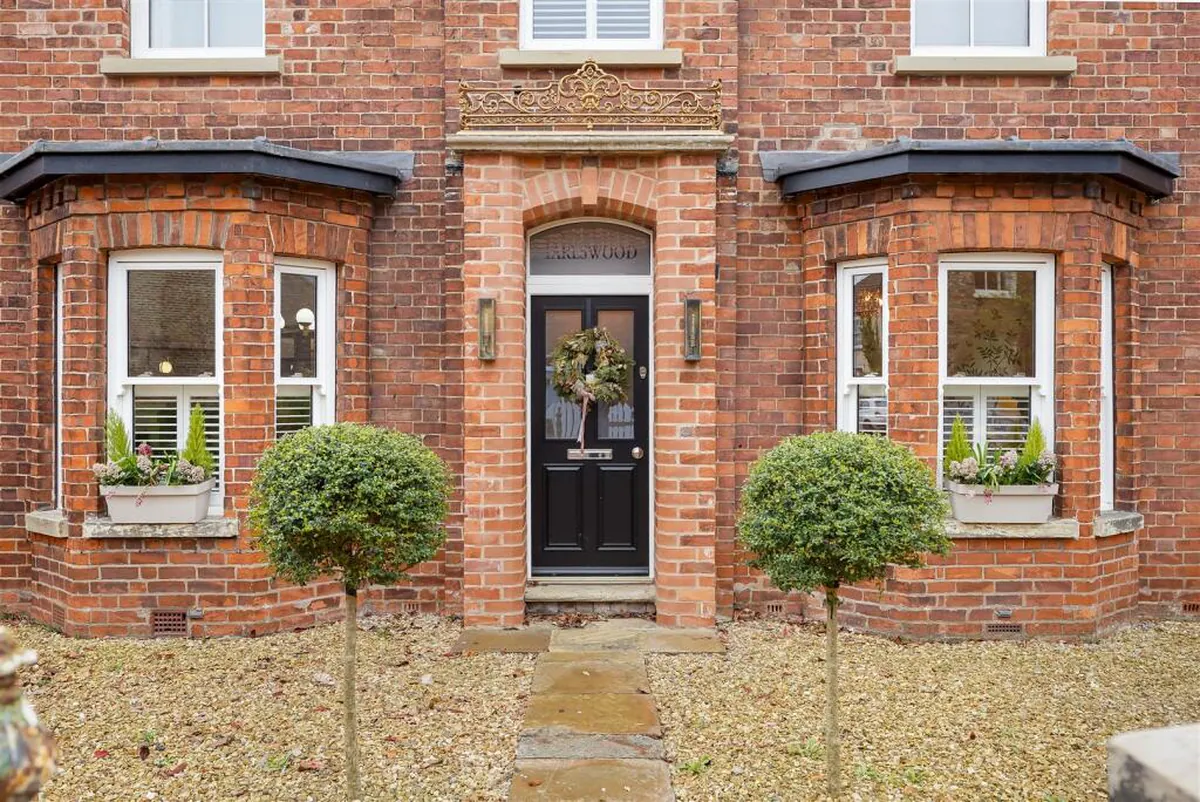

Close-up of the restored front entrance showing a black panelled door framed by an arched red-brick surround, an ornate gilt nameplate bracket above, replacement timber sash windows with plantation shutters either side, standard boxwood topiary, and a gravel front garden with stone pathway — heritage-led restoration of the principal elevation by Fining Associates Chartered Architects within a Conservation Area

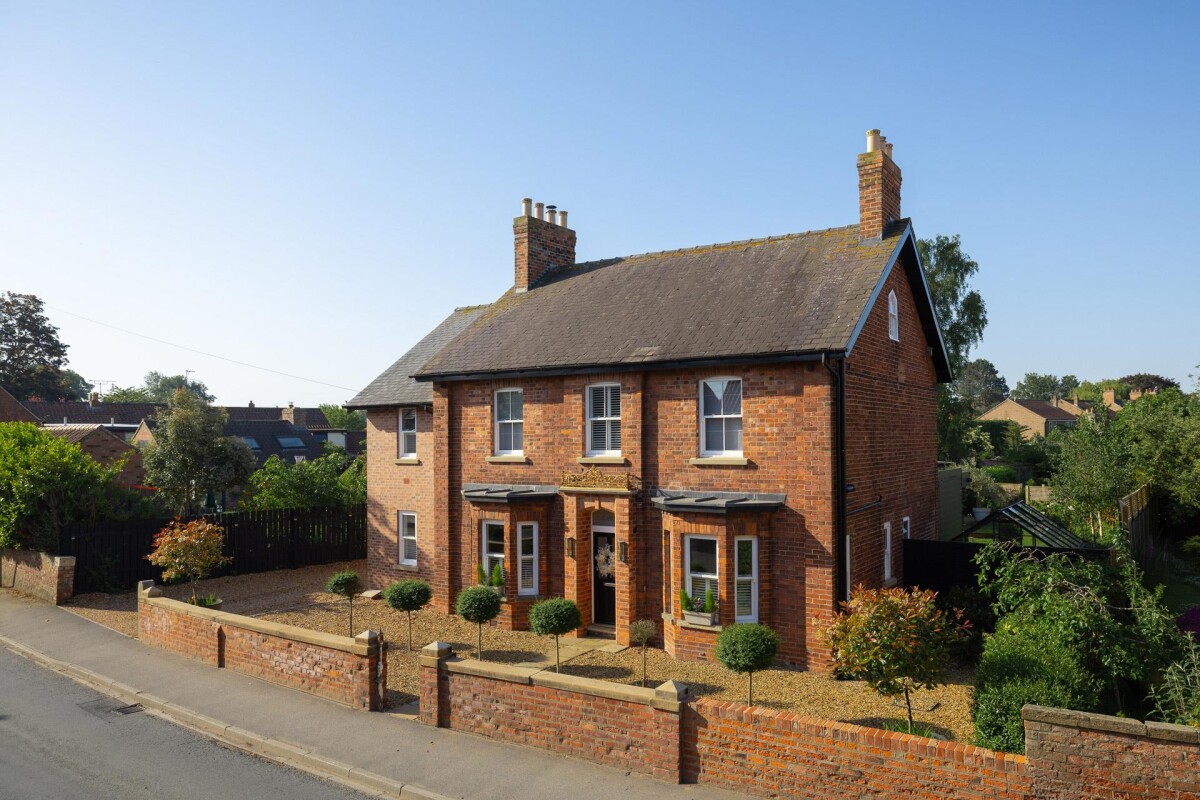

Elevated daytime view of the fully restored front elevation set within its village streetscene, showing twin brick chimney stacks, restored sash windows with shutters, a gravel driveway and brick boundary wall, mature topiary planting, and a glimpse of the side garden and greenhouse beyond — illustrating how the renovation sits within its wider Conservation Area context, by Fining Associates Chartered Architects, York

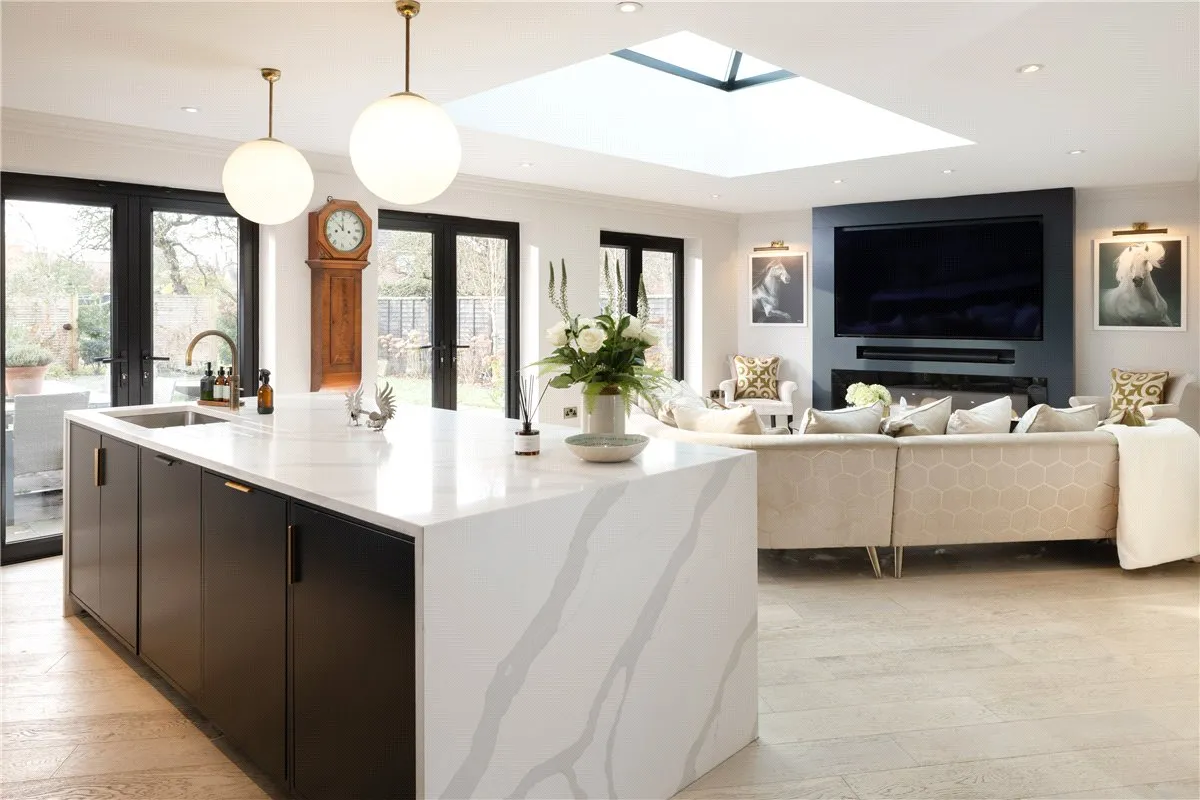

Open-plan kitchen and living extension showing the marble waterfall island in the foreground, an antique longcase clock, twin brass globe pendants, a wall-mounted television above a fireplace, a honeycomb-pattern sectional sofa, and full-width bi-fold doors open on both sides beneath a glazed roof lantern — rear extension by Fining Associates Chartered Architects, Tollerton Conservation Area

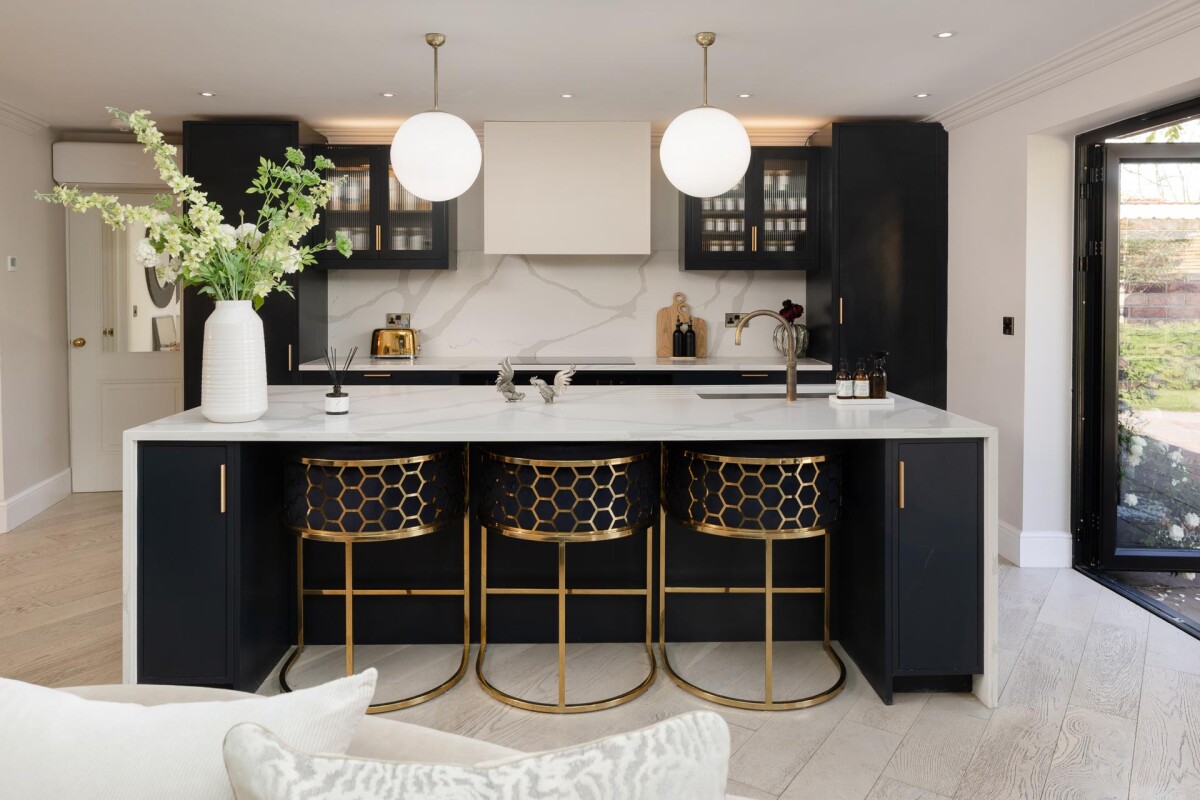

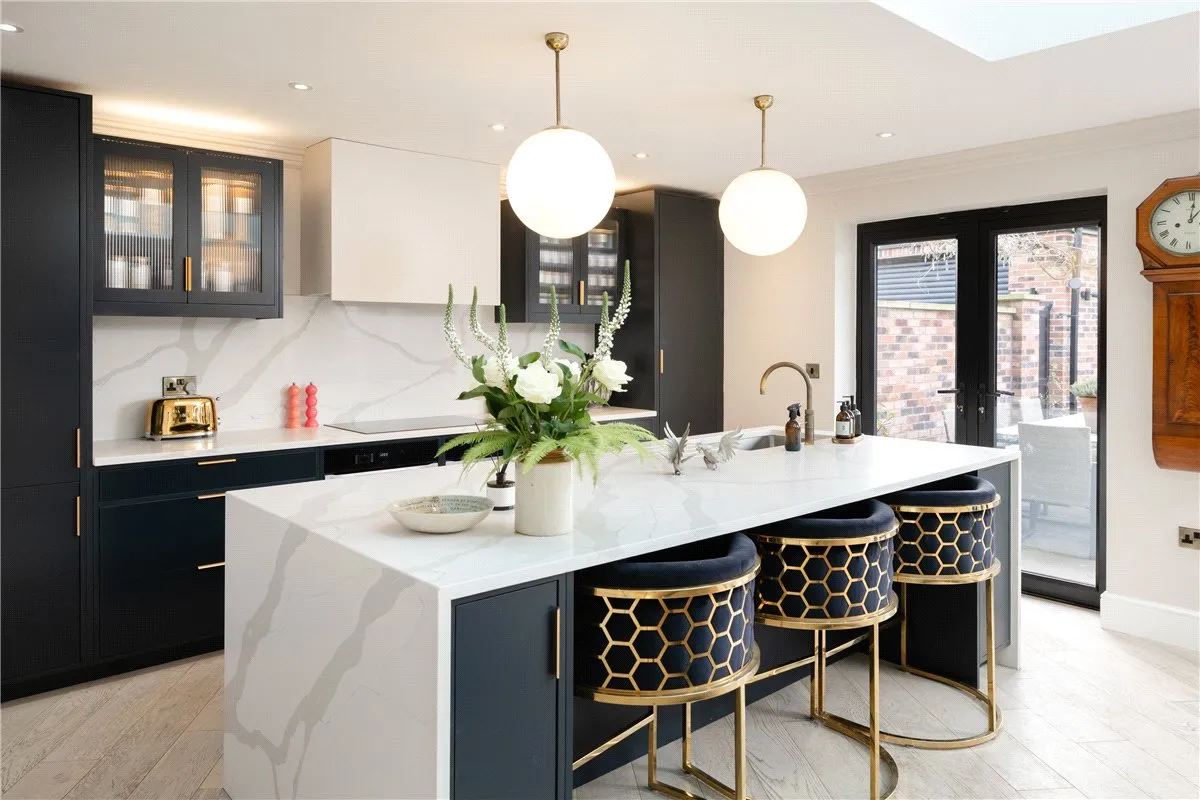

Close detail of the kitchen island showing a book-matched marble waterfall worktop, three honeycomb-pattern bar stools in navy velvet with brass frames, a marble splashback, brushed brass tap and toaster, and a glazed bi-fold door open to the garden — kitchen design within the rear extension by Fining Associates Chartered Architects, York

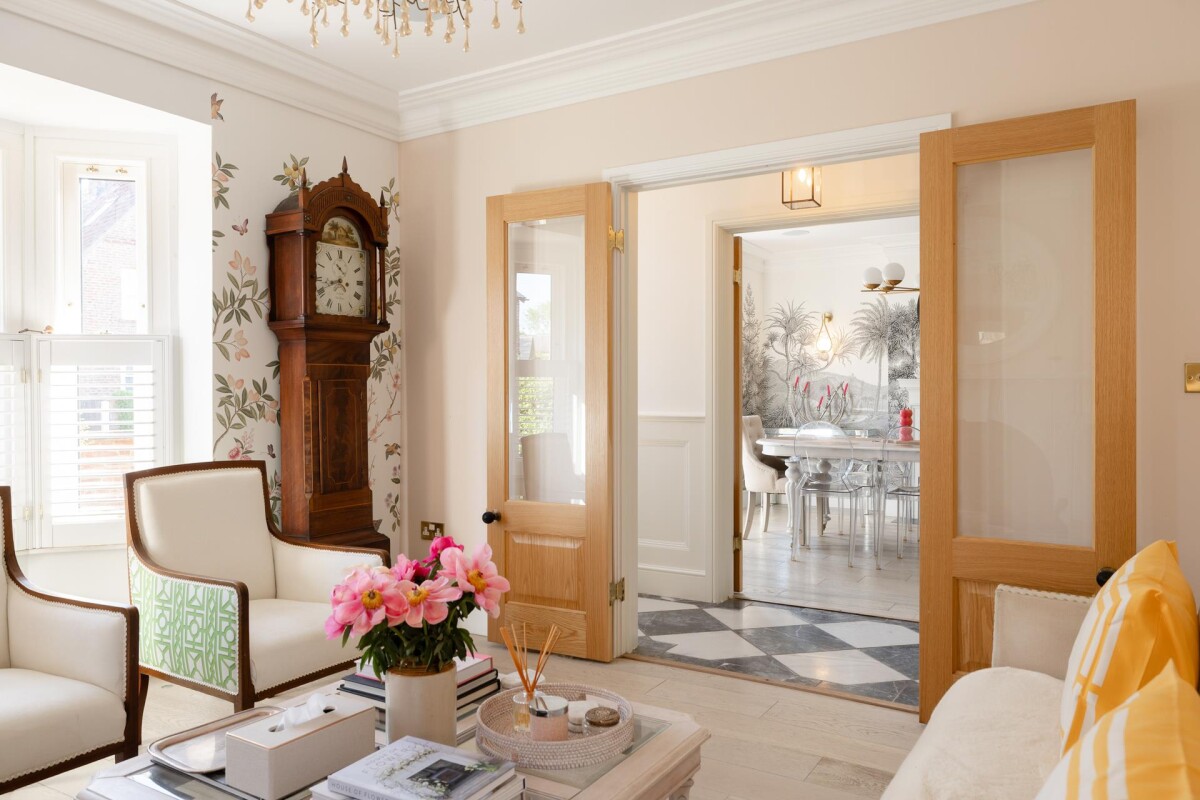

View from the snug through open glazed oak double doors to the marble-floored hallway and on into the mural-papered dining room beyond, with an antique longcase clock and botanical wallpaper in the foreground — illustrating the connected room-to-room flow achieved across the ground floor, renovation by Fining Associates Chartered Architects, Tollerton Conservation Area

Dining room dressed with an oval pedestal table, a mix of clear acrylic ghost chairs and nailhead-trimmed upholstered chairs, a mirrored sideboard, a restored period fireplace, and floor-to-ceiling monochrome tropical mural wallpaper, with sightlines through to the kitchen and a second fireplace beyond — renovation by Fining Associates Chartered Architects, York

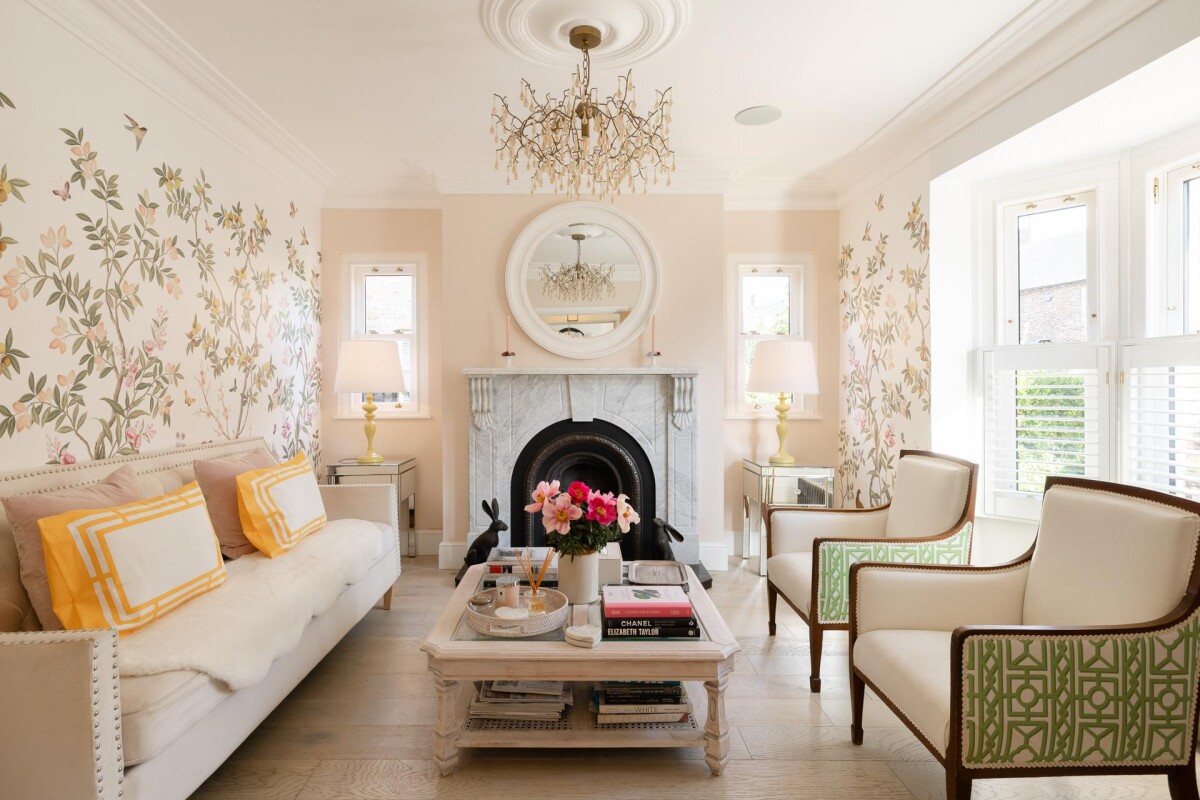

Snug or second reception room styled with a cream sofa dressed in mustard cushions and a sheepskin throw, mirrored side tables with table lamps, a marble fireplace with cast-iron insert beneath a round mirror, a branch-form crystal chandelier, and bird-and-floral wallpaper — flexible reception space designed by Fining Associates Chartered Architects within the Tollerton Conservation Area

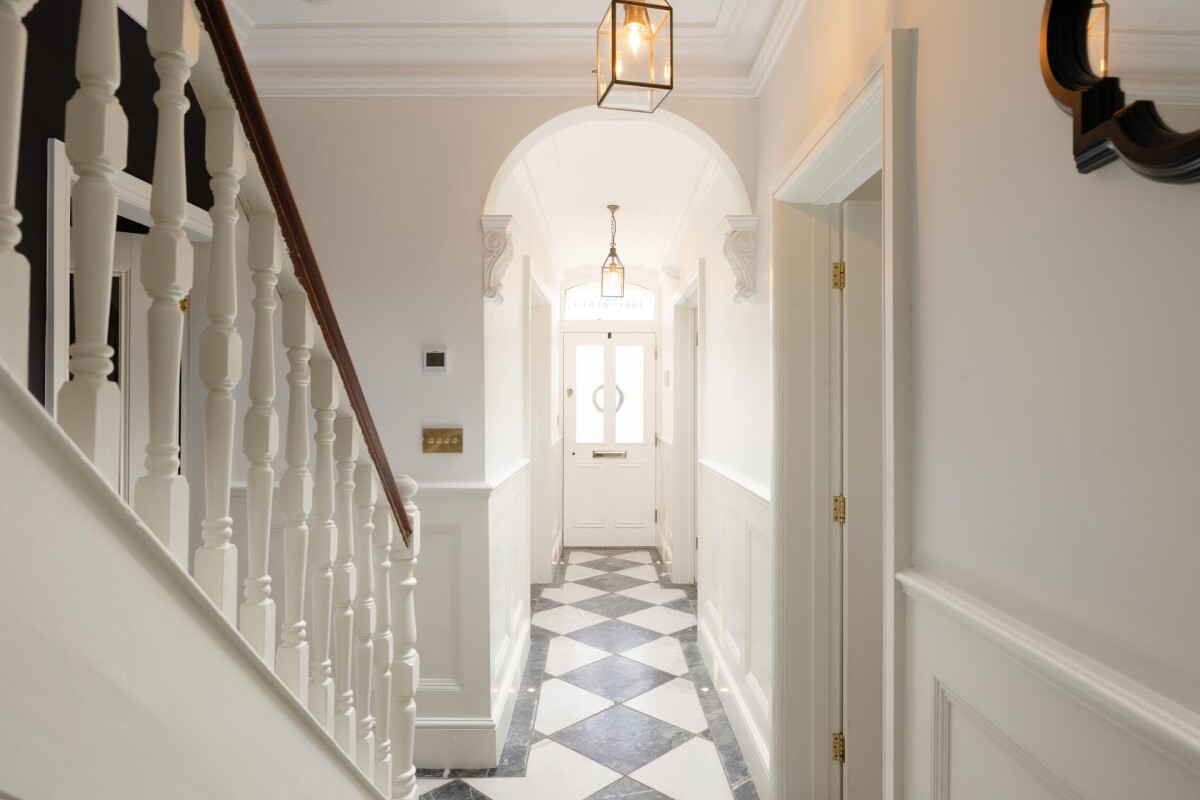

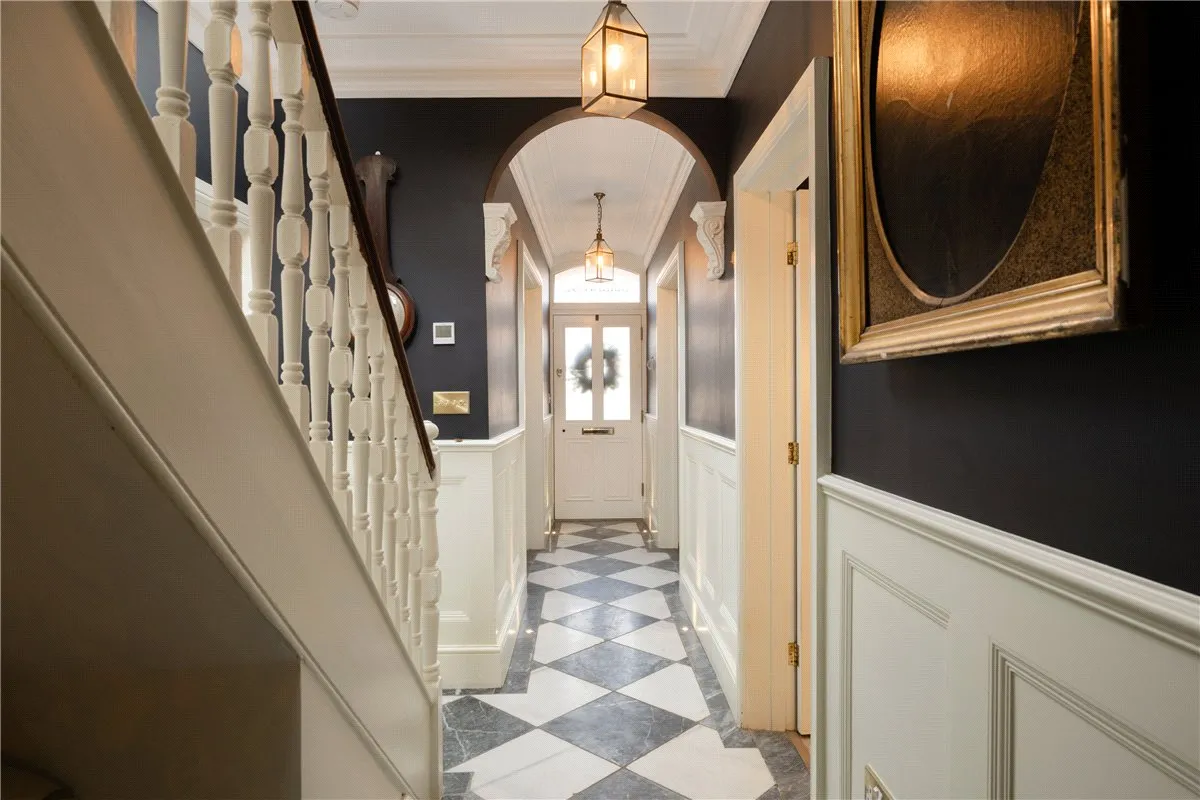

View along the restored entrance hallway looking toward the front door, showing the barrel-vaulted arch with decorative corbels, a black-and-white chequerboard marble floor, white painted wainscoting, brass lantern pendant lighting, and a glazed front door with fanlight — heritage hallway restoration by Fining Associates Chartered Architects, Tollerton Conservation Area

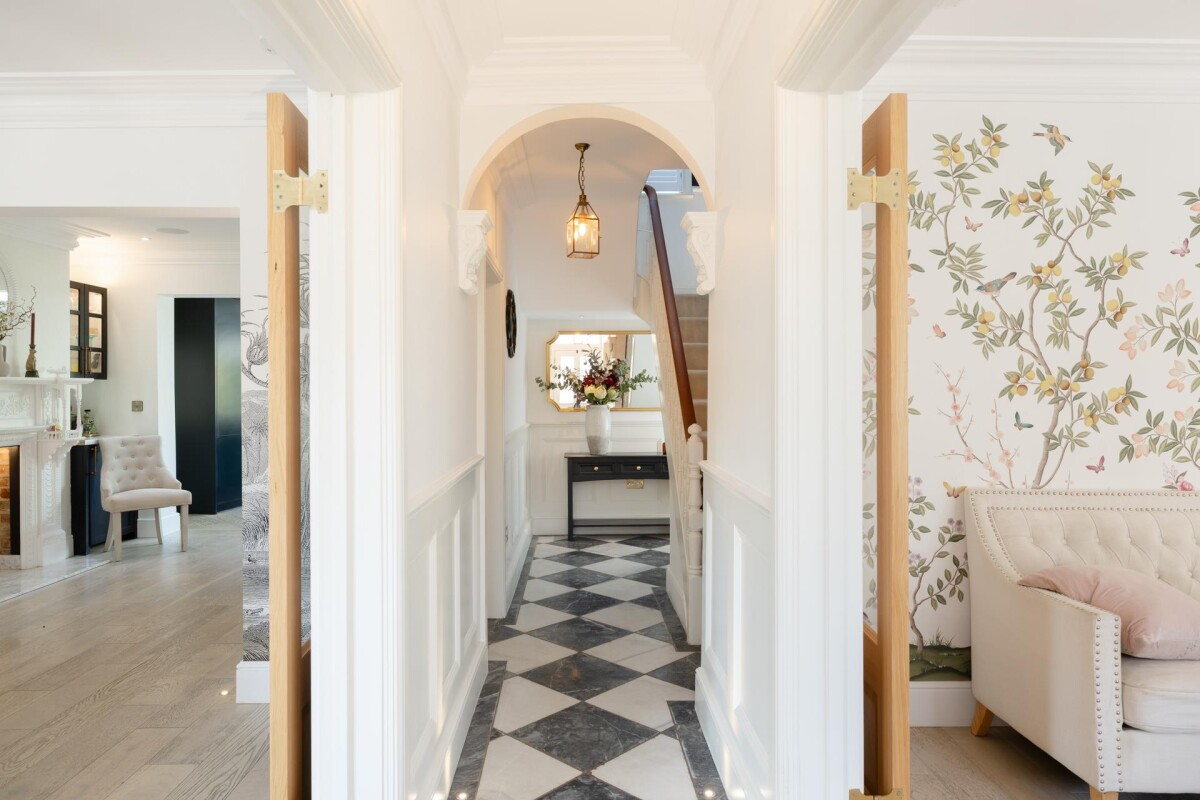

View framed between the snug and dining room through to the staircase hallway, showing the chequerboard floor continuing underfoot, a console table dressed with fresh flowers beneath a gilt mirror, and the turned staircase balustrade beyond — illustrating the connected sequence of restored period rooms, renovation by Fining Associates Chartered Architects, York

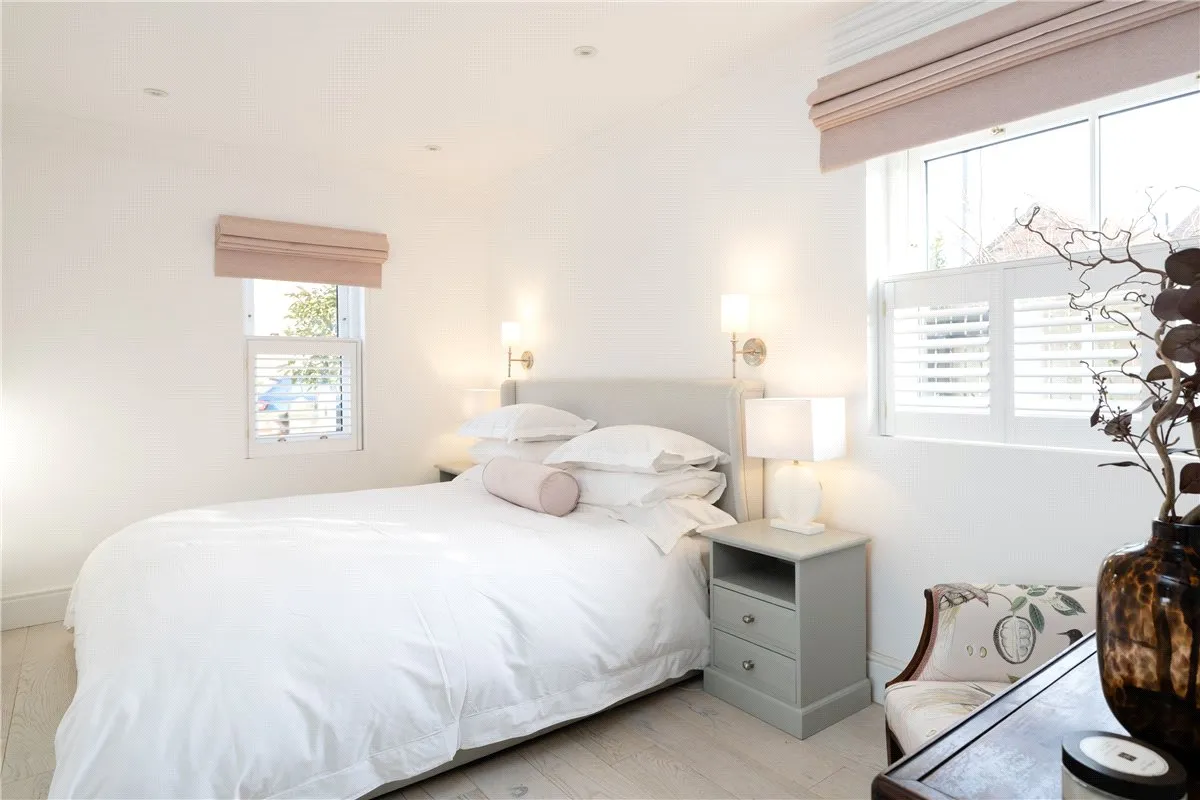

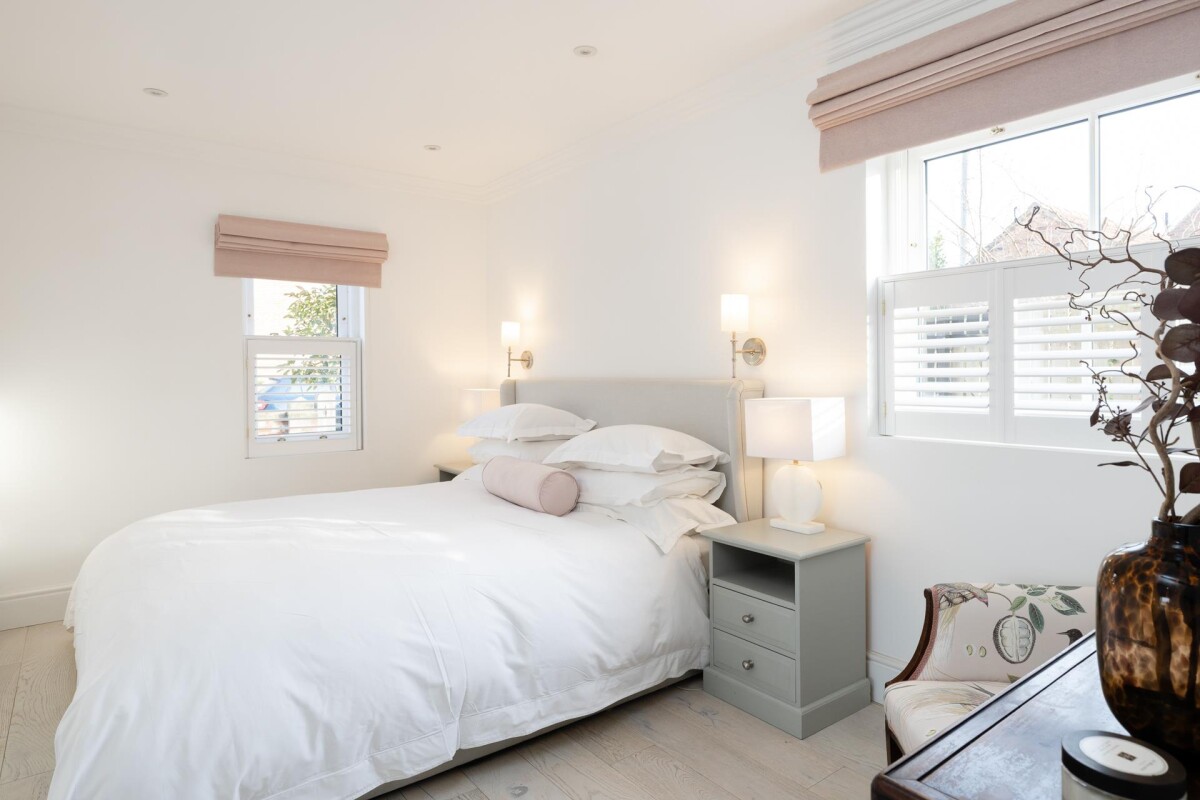

Guest suite bedroom within the side extension, captured in natural daylight with a grey upholstered bed, dried flower arrangement on the dressing table, an antique bird-print upholstered chair, and twin sash windows fitted with shutters and blush Roman blinds — flexible guest accommodation designed by Fining Associates Chartered Architects, Tollerton Conservation Area

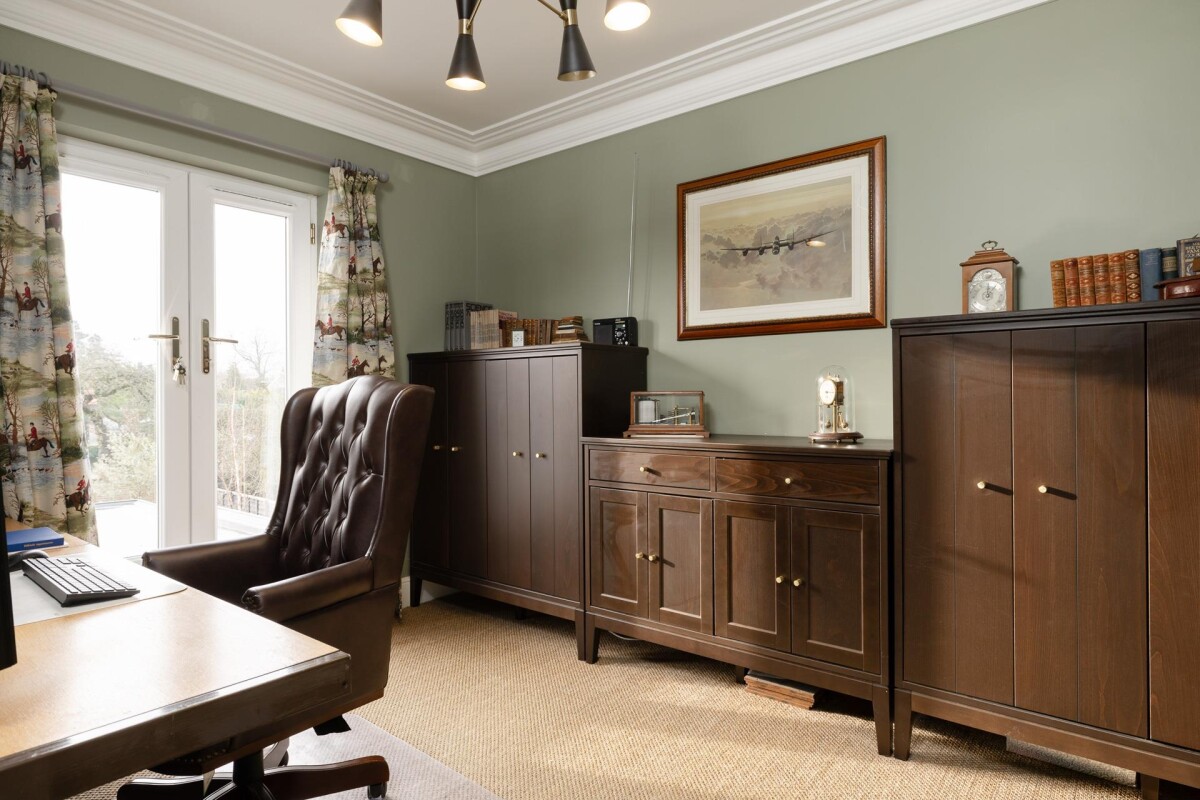

Home office within the side extension, fitted with dark wood cabinetry, a leather Chesterfield-style desk chair, equestrian print curtains framing French doors onto a Juliet balcony, and a modern sputnik-style ceiling light against sage green walls — flexible home-working space designed by Fining Associates Chartered Architects, Tollerton Conservation Area

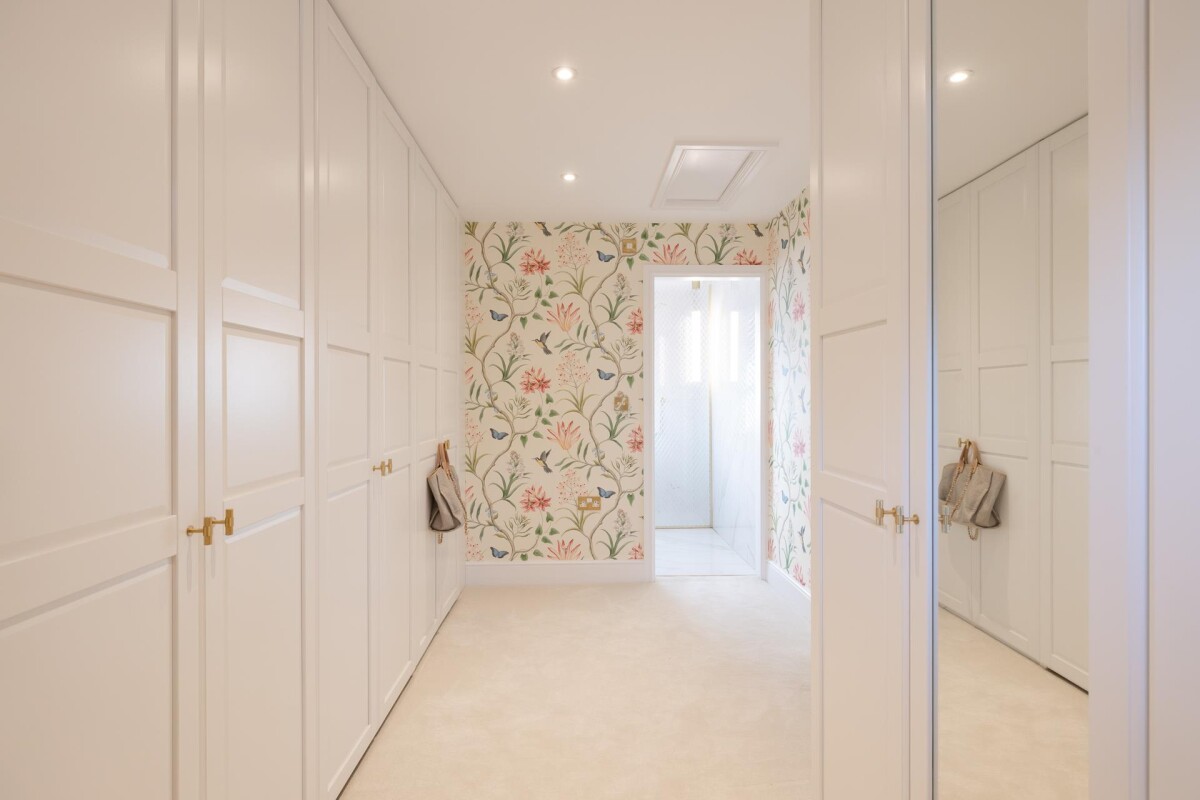

Dressing room fitted with full-height white wardrobes on both sides and a botanical-print feature wall, with a glimpse through to the private en-suite shower beyond — the concealed dressing room route connecting the principal bedroom to its en-suite, a layout detail from the first-floor remodelling by Fining Associates Chartered Architects, York

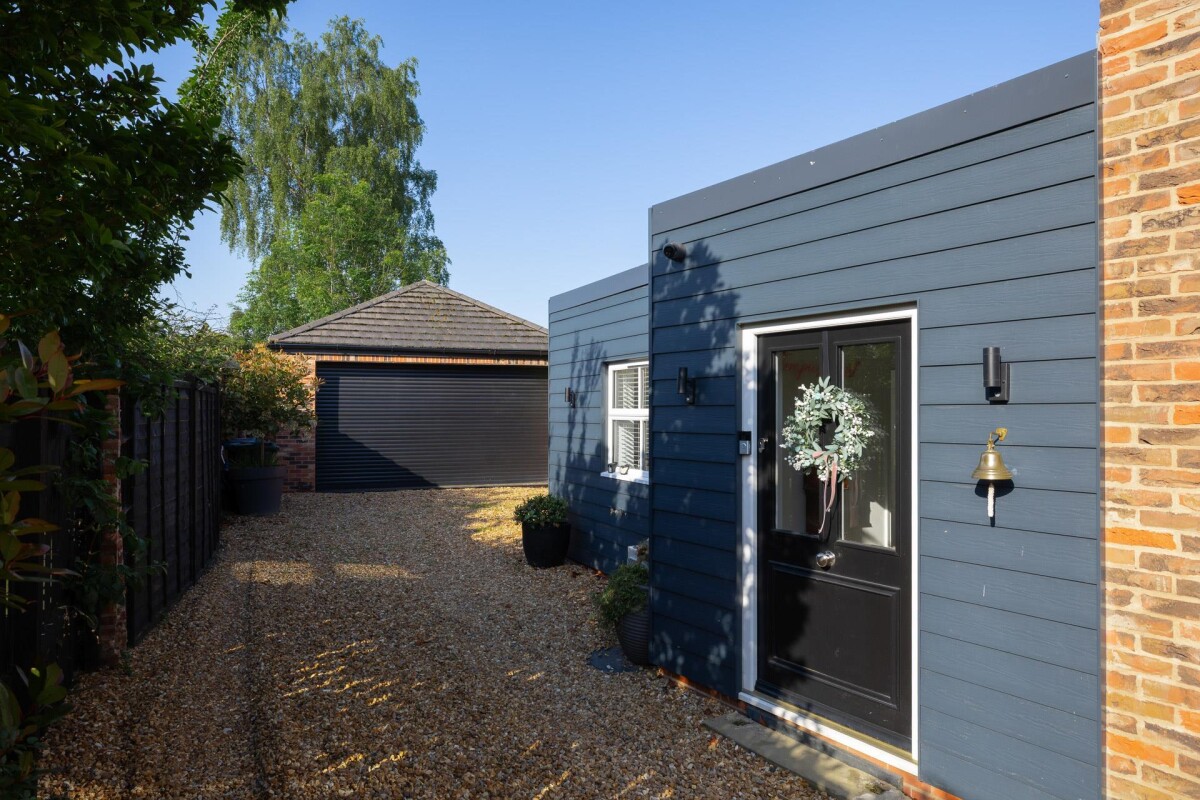

Side access path running between the dark-clad rear extension and the boundary fence, leading past a gravel courtyard to the newly constructed double garage with a roller door, set back from the road behind brick walling and mature planting — garage replacement and side access detailed in the approved planning scheme by Fining Associates Chartered Architects, Norh Yorkshire Conservation Area

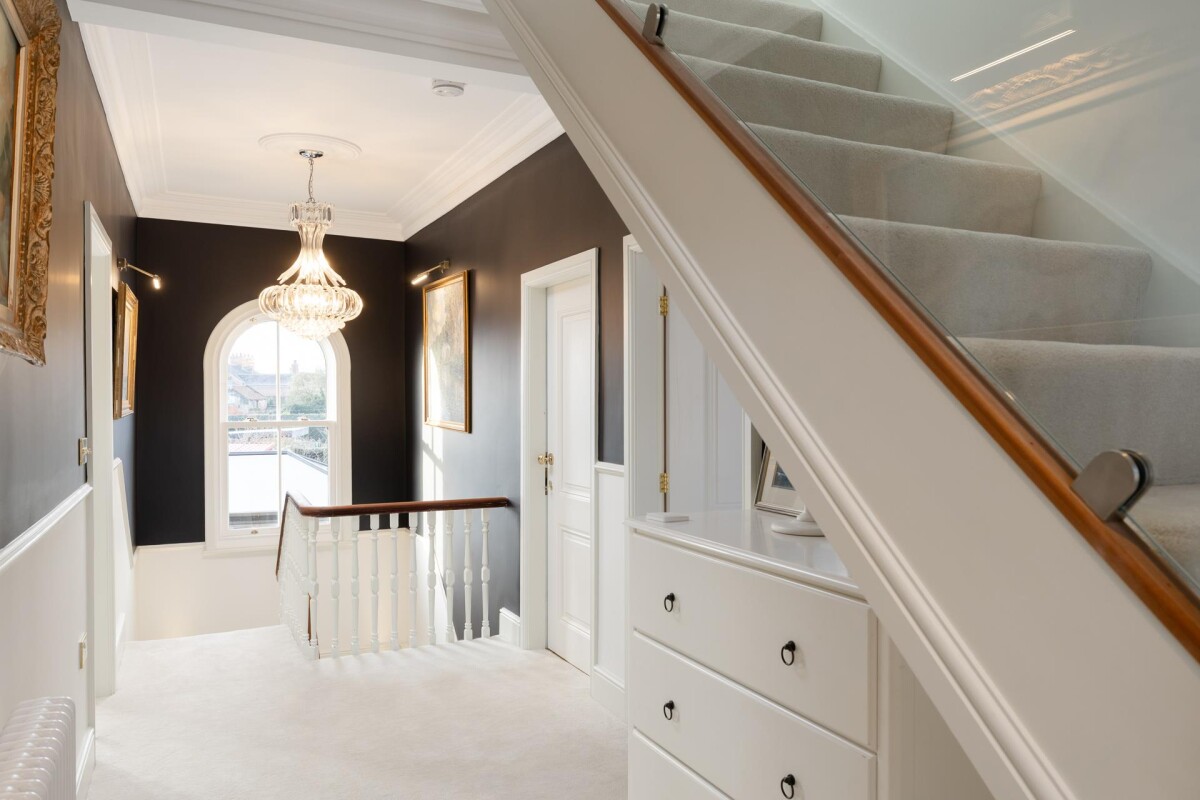

First-floor landing pairing original period features — an arched sash window, turned timber balustrade, and a gallery of gilt-framed artwork against deep charcoal walls — with a contemporary glass stair balustrade and crystal chandelier, illustrating the blend of heritage and modern detailing achieved by Fining Associates Chartered Architects within the Tollerton Conservation Area

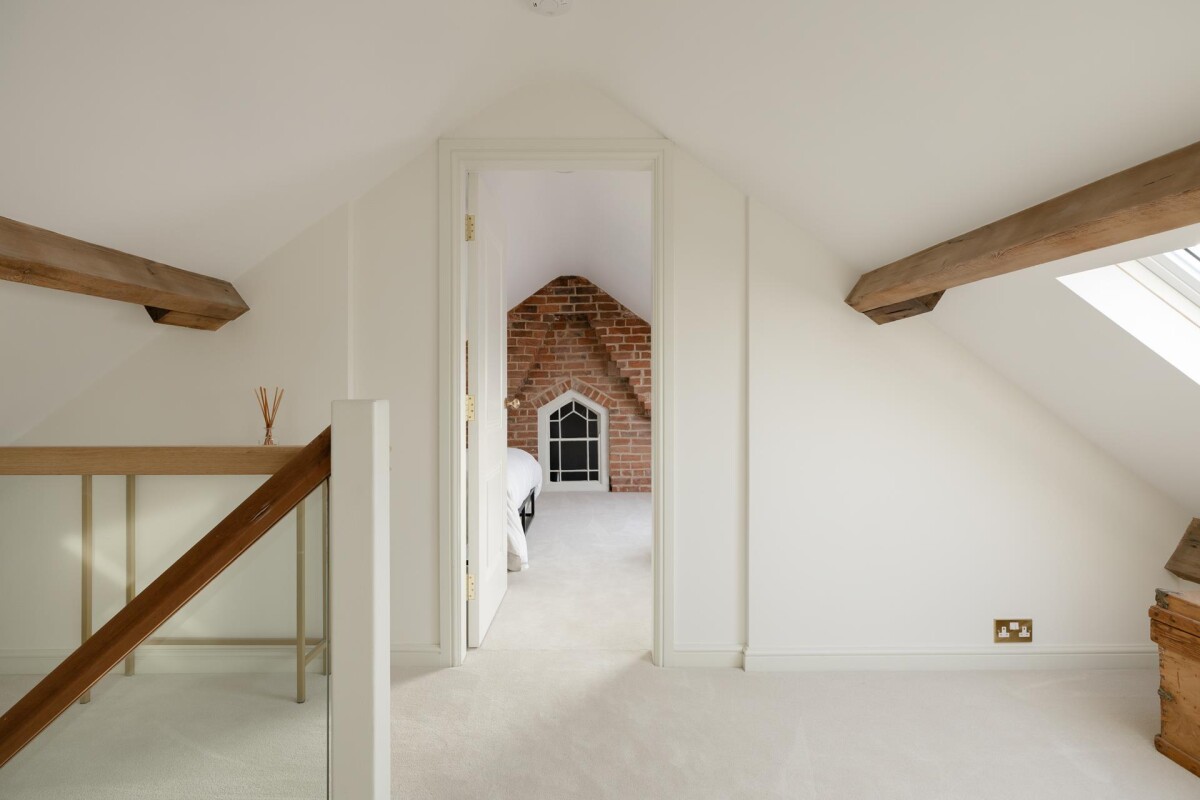

Loft-level landing with an exposed oak roof beam, glazed stair balustrade, and skylight window, looking through an open door to one of the two loft conversion bedrooms with its retained brick gable feature — circulation space within the roof conversion designed by Fining Associates Chartered Architects, Tollerton Conservation Area

Twilight view of the detached garden room at the far end of the south-facing rear garden, its pitched tile roof and brick gable softened by climbing wisteria and string lighting, overlooking a circular lawn with a fire bowl and heron sculpture — the substantial garden room described as suited to gym, studio, or workshop use, in a renovation by Fining Associates Chartered Architects, York

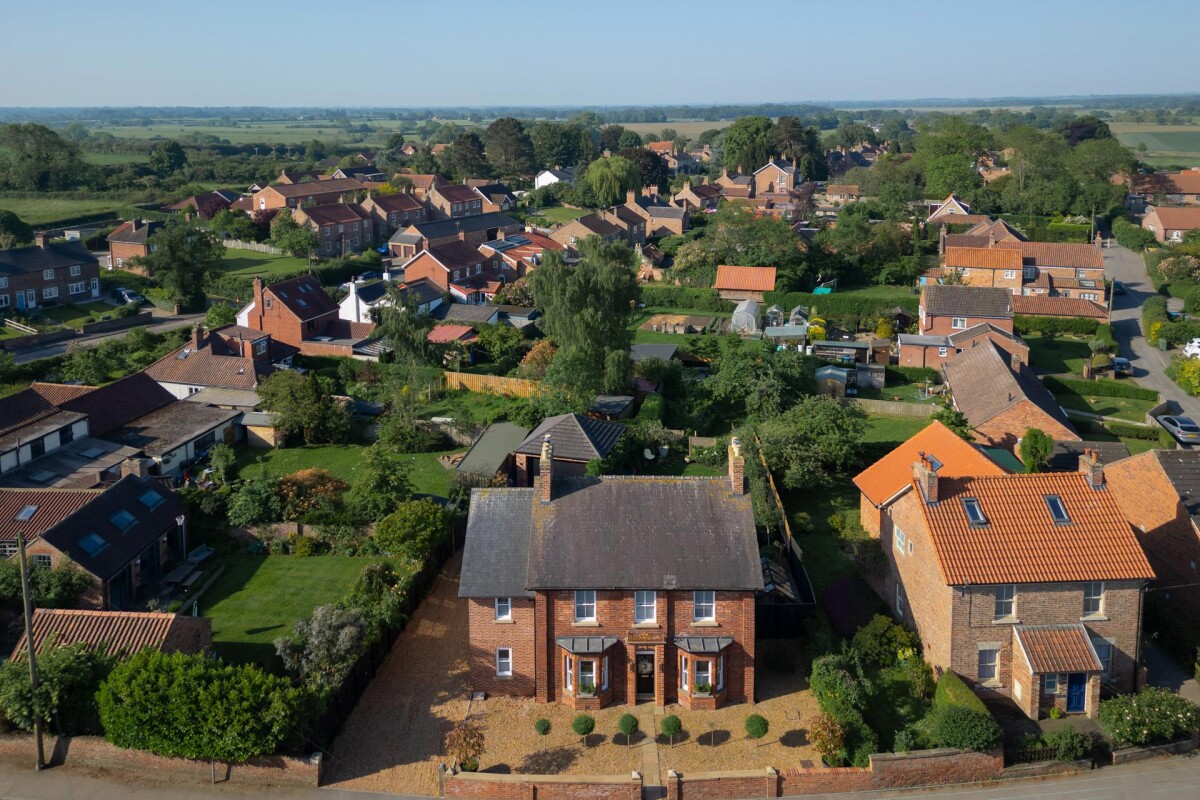

Elevated aerial view showing the renovated Victorian property within the wider streetscape of Tollerton village, surrounded by mature gardens, neighbouring rooftops, and open countryside beyond — illustrating the non-estate, village-centre position referenced in the Conservation Area planning assessment, renovation by Fining Associates Chartered Architects, North Yorkshire

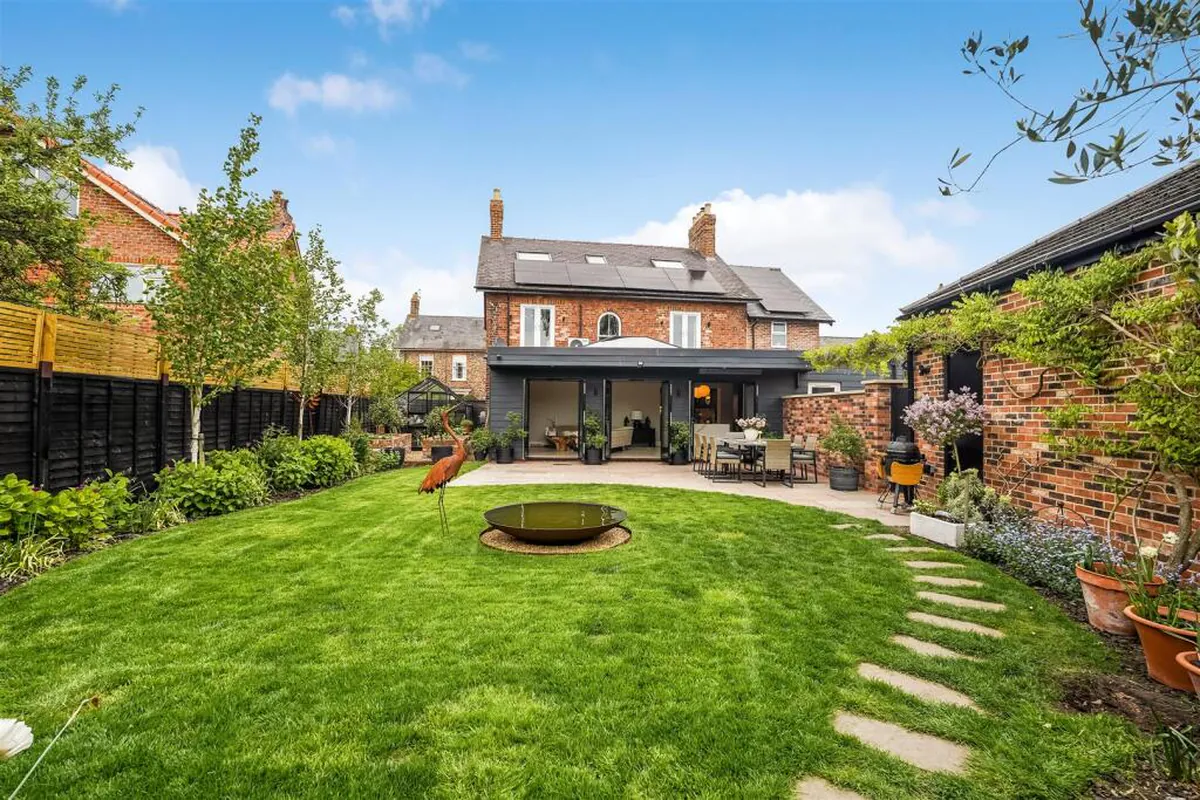

Daytime view across the south-facing rear garden showing a curved stepping-stone path through the lawn, a fire bowl and heron sculpture, open bi-fold doors into the rear extension, the solar-panelled roof above, and the wisteria-covered garden room to the right — companion daytime view to the dusk shot of the same garden, renovation by Fining Associates Chartered Architects, Tollerton Conservation Area

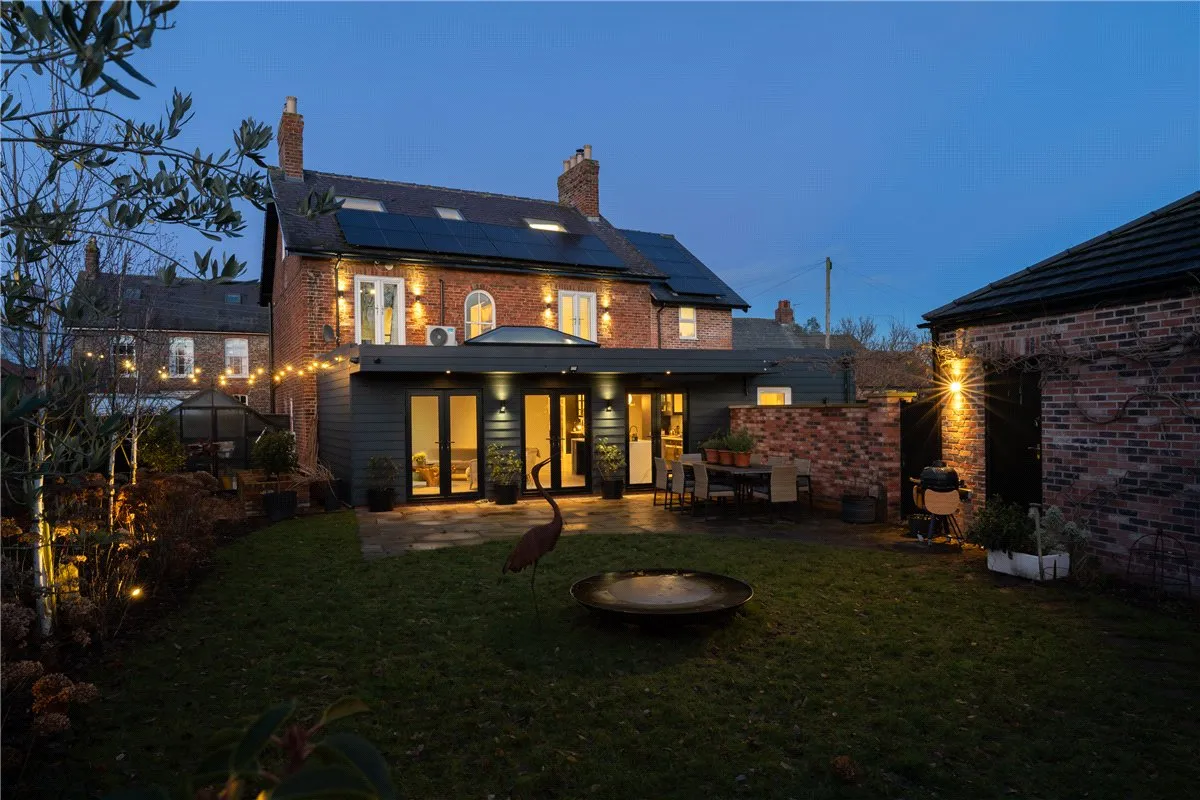

Dusk view of the rear garden and extension, with warm interior lighting glowing through the bi-fold doors, festoon lights strung along the garden room and boundary, the rear roof's solar panel array catching the last light, and a fire bowl and heron sculpture on the lawn — atmospheric companion shot to the daytime garden view, by Fining Associates Chartered Architects, York

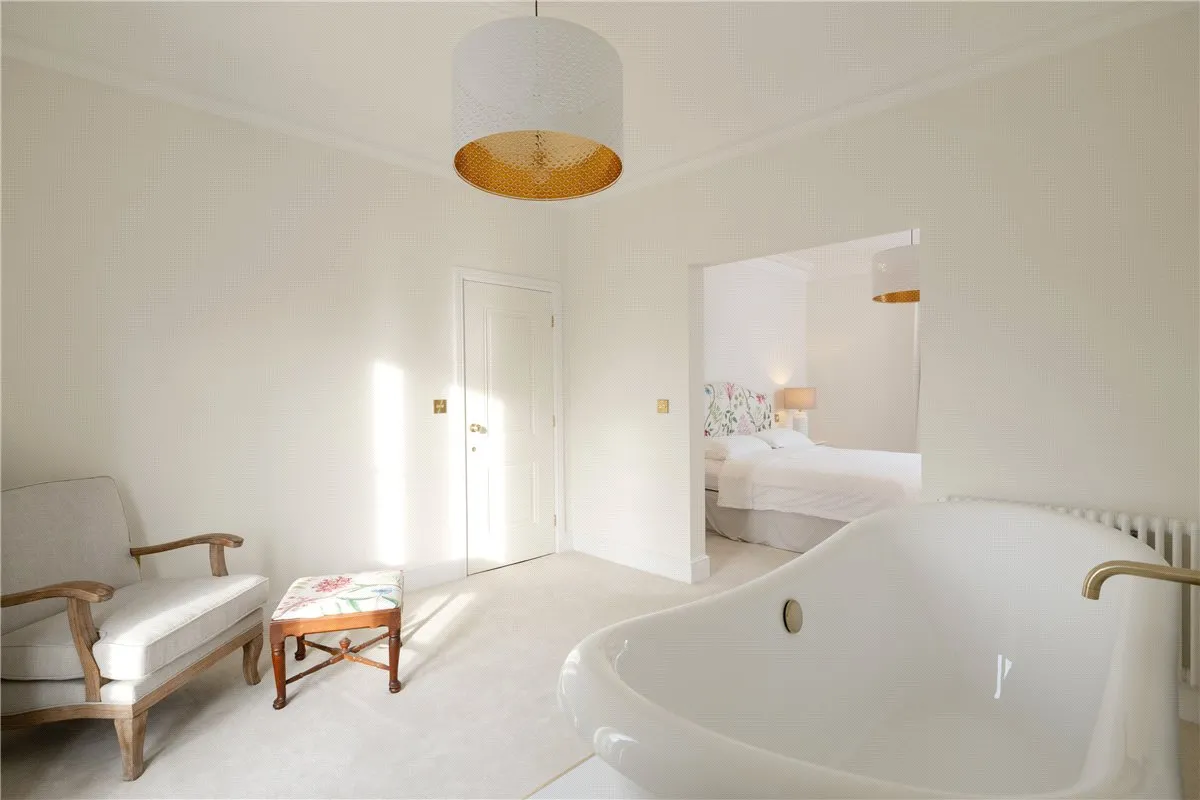

The principal bathroom's freestanding bath in the foreground, with a direct sightline through an open archway to the adjoining bedroom and its floral upholstered headboard — the dedicated bathroom opening straight off the main bedroom, distinct from the separate dressing-room route to the private en-suite, renovation by Fining Associates Chartered Architects, Tollerton Conservation Area

Kitchen island view looking back through to the dining room, with a brass horse-head sculpture displayed on an antique chest in the foreground, navy cabinetry, honeycomb bar stools, and a marble waterfall worktop — open-plan kitchen design by Fining Associates Chartered Architects, Tollerton Conservation Area

Open-plan living area within the rear extension, with twin black-and-white equestrian prints flanking a wall-mounted television above the fireplace, an antique longcase clock beside the kitchen island, and full-width bi-fold doors open on both sides beneath the glazed roof lantern — extension design by Fining Associates Chartered Architects, Tollerton Conservation Area

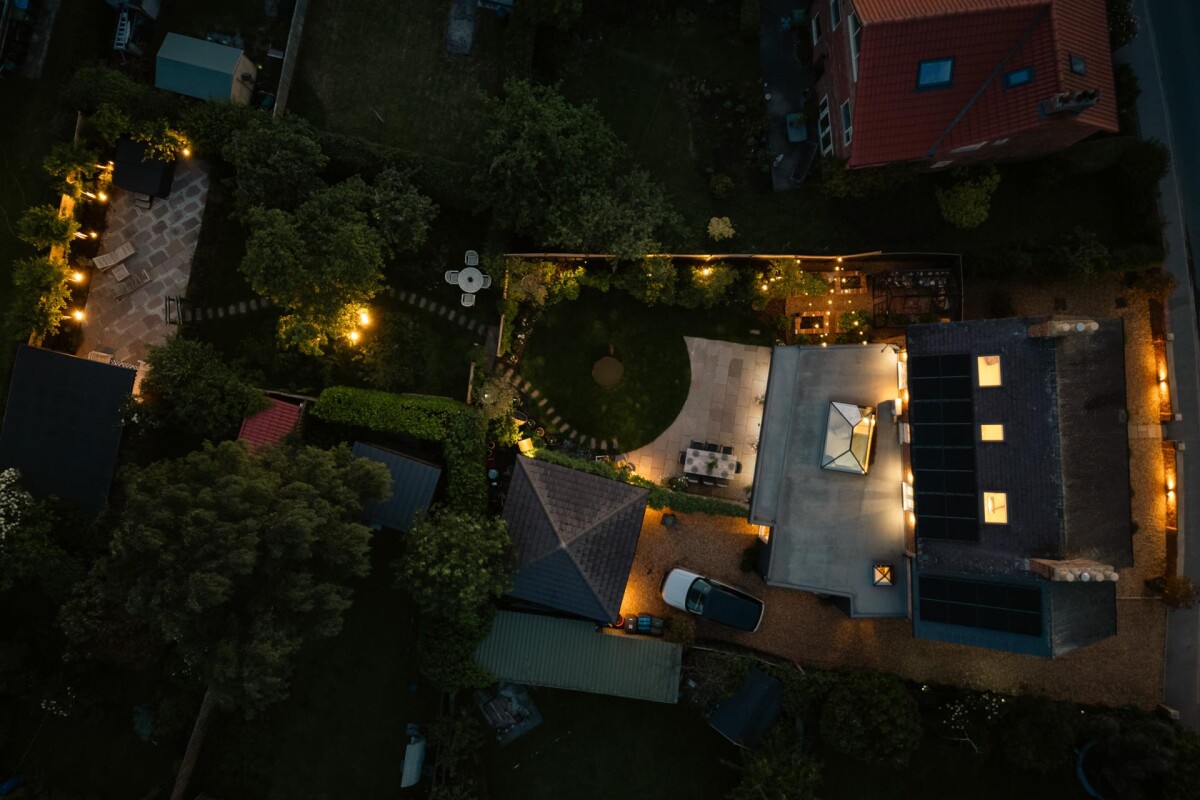

Aerial night view of the rear garden showing the full layout in one frame — the curved stepping-stone path, paved dining terrace, illuminated garden room, and the main house's solar-panelled roof and glowing rooflights — a comprehensive overview of the south-facing garden's three zones, renovation by Fining Associates Chartered Architects, North Yorkshire

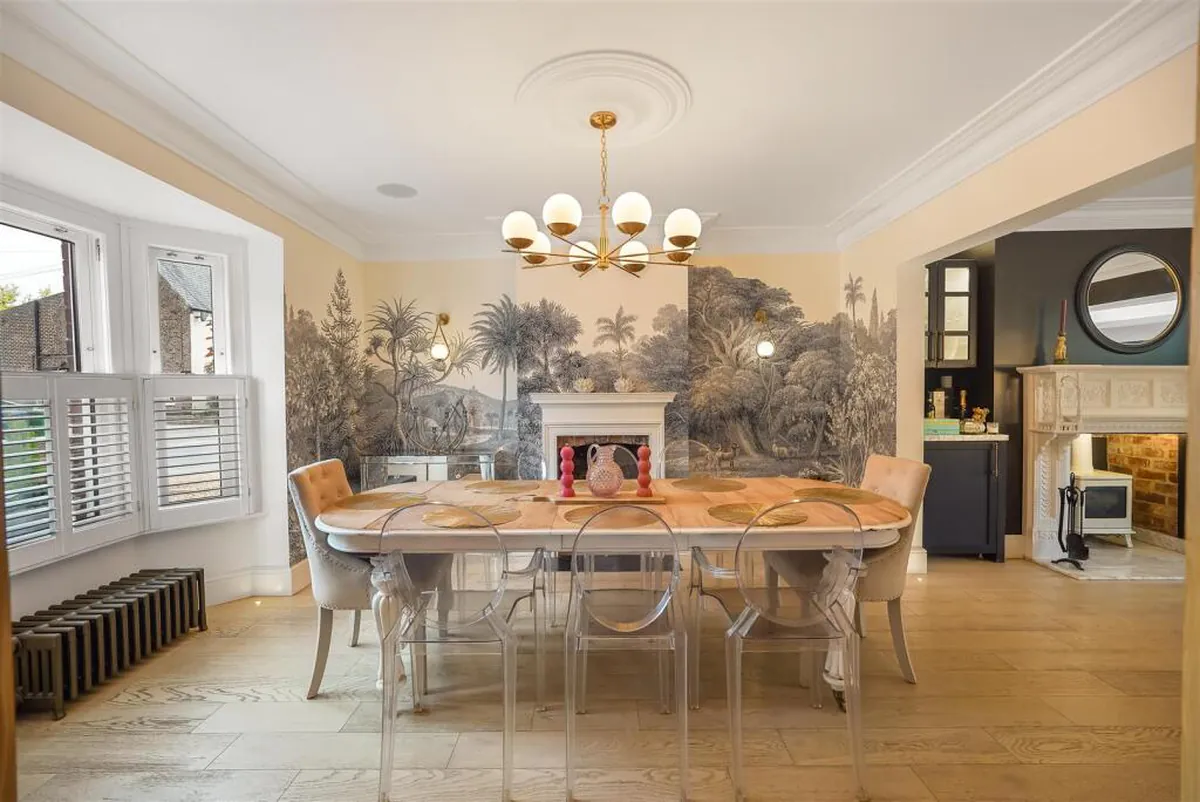

Dining room viewed straight on toward the mural-papered fireplace wall, with a shuttered bay window and traditional cast-iron radiator to the left and a sightline through to the kitchen and a second fireplace beyond — another angle of the principal ground-floor dining space, renovation by Fining Associates Chartered Architects, York

Bedroom with a hummingbird-and-floral upholstered headboard and matching gold-lined drum pendant lights, with a sightline through an open archway to a window seating nook furnished with an armchair and footstool — a previously unseen alcove off this first-floor bedroom, renovation by Fining Associates Chartered Architects, Tollerton Conservation Area

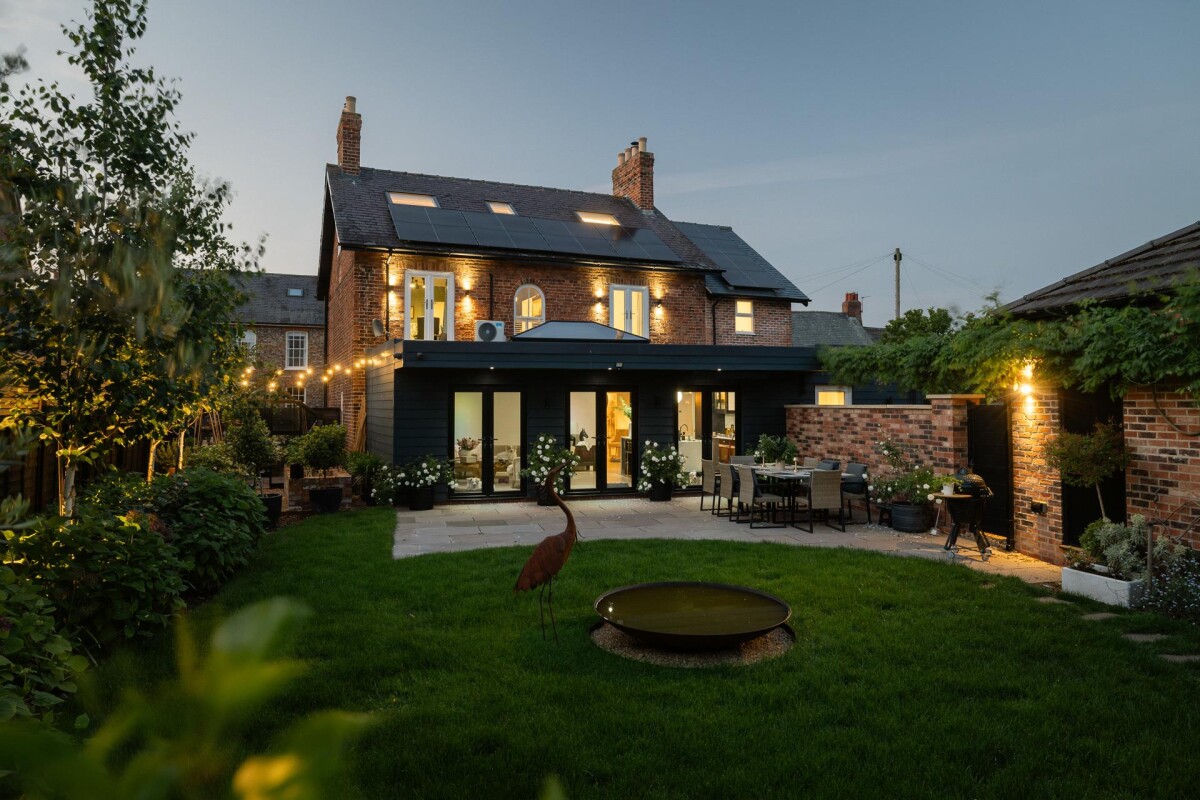

Wider dusk view of the rear garden and extension, set back enough to take in the full width of the plot — heat pump and solar-panelled roof, illuminated bi-fold doors, festoon-lit garden room, fire bowl, and heron sculpture all visible within the same frame — a full-plot overview complementing the closer dusk shot of the same garden, renovation by Fining Associates Chartered Architects, Tollerton Conservation Area
